SMART SBID-7286R-P Pro Interactive Display with iQ and Smart Meeting Pro

SMART SBID-7075P-W Pro interactive display w/ SMART Meeting Pro

SMART SBID-7075P-W Pro interactive display w/ SMART Meeting Pro

SMART SBID-7286R-PW Pro Interactive Display with iQ and Smart Meeting Pro - White

SMART SBID-7286R-PW Pro Interactive Display with iQ and Smart Meeting Pro - White

Whiteborad Interface
Touch & Pen
Screen Size
79 to 89
Availability: In stock
SKU
SMART SBID-7286R-P
UPC Code
5415247238836
Condition
New
secure transactionsecure transaction

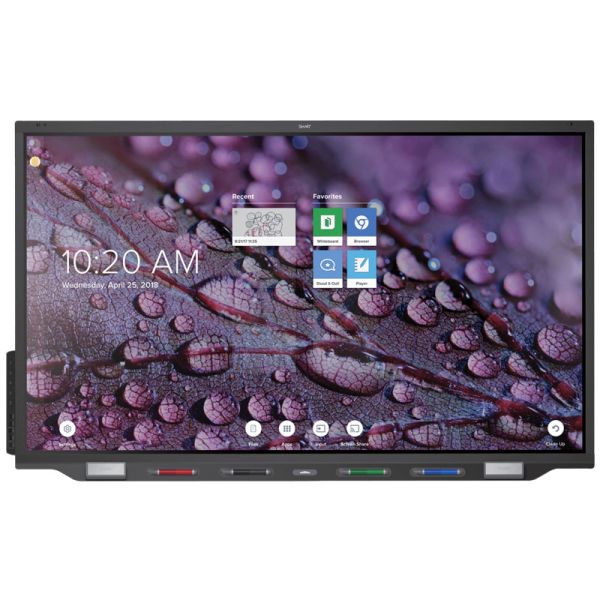

SMART SBID-7286R-P Pro Interactive Display with iQ and Smart Meeting Pro


SMART SBID-7286R-P Pro Interactive Display with iQ and Smart Meeting Pro is the display developed to be the interactive hub for your meeting rooms. SMART SBID-7286R-P’s 86” display comes with 4K Ultra HD resolution giving you the best picture quality available. The HyPr touch with EMR technology in SBID-7286R-P Pro Interactive Display will provide you the enhanced interactive experience with multi-touch capabilities up to 20 fingers.

Four users can use pens and erasers at the same time with different colored ink in SBID-7286R-P Pro for a natural and fully collaborative experience. No-touch input will go unnoticed with over 1000 levels of pressure by the pens. SMART SBID is loaded with different smart software and a Bluetooth 4.2 dual-mode support to make your meetings and interaction convenient and more advanced.
Write Your Own Review
You're reviewing:SMART SBID-7286R-P Pro Interactive Display with iQ and Smart Meeting Pro
Your Rating



SMART SBID-7286R-P Pro Interactive Display Comes Standard With:

  • 4K ultra-high-definition LED display
  • HyPr Touch with EMR technology
  • Pen ID feature allows you to assign different appearances to the pens
  • Multitouch capabilities, Ultra-smooth finish
  • Two 15 W integrated speakers
  • For a standard VESA 800 mm × 600 mm mounting plate
  • Customizable Home screen
  • Whiteboard, Browser, Screen Share, File and app libraries
  • Writing and drawing over any input
  • Freeze screen and screen shade, Automatic software updates
  • Dimensions D: 5.6 in x H: 48.6 in x W: 78.8 in
  • Weight 167.55 lb.

SMART SBID-7286R-P Pro Interactive Display with iQ and Smart Meeting Pro



  • Interaction
    Touch TechnologyHyPr Touch with EMR
    Multitouch CapabilitiesUp to 20 finger touch points, four pen touch points and two eraser touch points
    Object AwarenessBehavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser, or palm
    Simultaneous Tool DifferentiationMultiple users can touch the display and use pens and erasers at the same time for a natural, fully collaborative experience
    Pen IDFour people can write independently and simultaneously, using different colored ink
    SilktouchUltra-smooth finish that allows you to use the display for hours without finger burn
    True Palm RejectionPalms, wrists, hands, and other objects are ignored while users write or draw
    Pressure SensitivityDetection of over 1,000 levels of pressure by the pens
    Display
    TypeLCD with LED back light
    Aspect Ratio16:9
    Optimal Resolution (HDMI inputs)4K UHD (3840 × 2160) at 60 Hz
    Horizontal Frequency (typical)135 kHz
    Vertical Frequency (typical)60 Hz
    Brightness (maximum)350 cd/m²
    Pixel Dimensions0.4935 mm × 0.4935 mm
    Viewing Angle178°
    Response Time (typical)8 ms
    1000BASE-T EthernetTwo external ports for a Gigabit Ethernet switched network connecting the interactive display and the OPS module to an external network and an external device, such as a computer
    Wi-FiIEEE 802.11A/B/G/N/AC with 2 × 2 MIMO (both 2.4 and 5 GHz bands)
    BluetoothBluetooth 4.2 dual mode (backwards compatible with Bluetooth 2.1 + EDR)
    Sensors

    2 Proximity
    1 Ambient light
    1 IR (for remote control)

    AudioTwo 15 W integrated speakers
    Noise LevelUp to 38 dBA
    Included Cables and Accessories

    1 Country-specific power cable
    1 USB 2.0 cable
    4 Pens
    2 Erasers
    1 Remote control
    1 WM-SBID-200 wall mount



    Mounting HolesFor a standard VESA 800 mm × 600 mm mounting plate
    Lower mounting holes 12 1/8" (30.7 cm) from the bottom of the interactive display
    Mounting Bracket DepthMinimum depth of 2" (5.1 cm) for all components on the back of the interactive display for airflow
    iQ Experience
    iQ ExperienceiQ experience embedded in the display provides better performance without the need to install a separate appliance
    Included Apps and FeaturesCustomizable Home screen
    Whiteboard
    Browser
    Screen Share
    File and app libraries
    Writing and drawing over any input
    Freeze screen and screen shade
    Automatic software updates
    Software
    Included SoftwareiQ Android-based embedded computing
    One-year subscription to SMART TeamWorks Room edition
    One SMART Meeting Pro software room license
    Subscription to SMART Remote Management for length of SMART Assure warranty term
    SMART Ink and SMART Product Drivers
    Connectors
    Convenience Panel

    2 USB 3.0 Type-A (for media)
    1 USB 3.0 Type-B (for touch)
    1 USB Type-C
    1 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support



    Connector Panel

    1 Accessory slot (for OPS devices, such as the optional SMART PCM8 OPS PC)
    3 USB 3.0 Type-A (for media)
    1 USB 2.0 Type-A (for service use only)
    2 USB 3.0 Type-B (for touch)
    3 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support
    1 HDMI 2.0 out
    1 VGA in
    1 Stereo 3.5 mm in
    1 Stereo 3.5 mm out
    1 S/PDIF out
    2 RJ45
    1 RS-232 in
    1 RS-232 out



    Back of Display1 AC power in
    1 AC power out
    Cable RequirementsHDMI, USB 2.0, USB 3.0, USB Type-C
    Storage and Operating Requirements
    Power Requirements100V to 240V AC, 50 Hz to 60 Hz
    Power Consumption at 77°F (25°C)Standby mode: <0.5 W, Normal operating: 170 W
    Operating Temperature41–95°F (5–35°C)
    Storage Temperature-4–140°F (-20–60°C)
    Humidity5–80% relative humidity, non-condensing
    DimensionsD: 5.6 in x H: 48.6 in x W: 78.8 in
    Weight167.55 lb.
