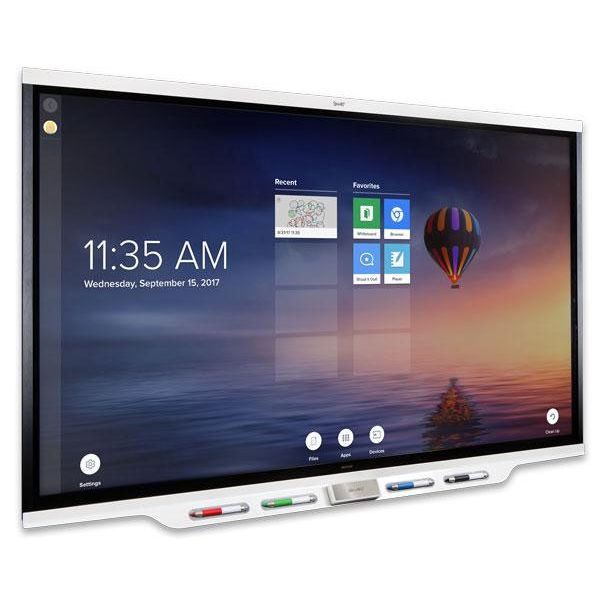

SMART SBID-7275R-PW Pro Interactive Display with iQ and SMART Meeting Pro - White
secure transaction
- 4K ultra-high-definition LED display
- HyPr Touch with EMR technology
- Pen ID feature allows you to assign different appearances to the pens
- Multitouch capabilities, Ultra-smooth finish
- Two 15 W integrated speakers
- iQ experience embedded
- For a standard VESA 800 mm × 600 mm mounting plate
- Customizable Home screen
- Whiteboard, Browser, Screen Share, File and app libraries
- Writing and drawing over any input
- Freeze screen and screen shade, Automatic software updates
- Dimensions D: 4.25 in x H: 42.32 in x W: 69.01 in
- Weight 127.86 lb.
SMART SBID-7275R-PW Pro Interactive Display with iQ and SMART Meeting Pro - White
Interaction Touch Technology HyPr Touch with EMR Multitouch Capabilities Up to 20 finger touch points, four pen touch points and two eraser touch points Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser, or palm Simultaneous Tool Differentiation Multiple users can touch the display and use pens and erasers at the same time for a natural, fully collaborative experience Pen ID Four people can write independently and simultaneously, using different colored ink Silktouch Ultra-smooth finish that allows you to use the display for hours without finger burn True Palm Rejection Palms, wrists, hands, and other objects are ignored while users write or draw Pressure Sensitivity Detection of over 1,000 levels of pressure by the pens Display Type LCD with LED back light Aspect Ratio 16:9 Optimal Resolution (HDMI inputs) 4K UHD (3840 × 2160) at 60 Hz Horizontal Frequency (typical) 135 kHz Vertical Frequency (typical) 60 Hz Brightness (maximum) 350 cd/m² Pixel Dimensions 0.4935 mm × 0.4935 mm Viewing Angle 178° Response Time (typical) 8 ms 1000BASE-T Ethernet Two external ports for a Gigabit Ethernet switched network connecting the interactive display and the OPS module to an external network and an external device, such as a computer Wi-Fi IEEE 802.11A/B/G/N/AC with 2 × 2 MIMO (both 2.4 and 5 GHz bands) Bluetooth Bluetooth 4.2 dual mode (backwards compatible with Bluetooth 2.1 + EDR) Sensors 2 Proximity
1 Ambient light
1 IR (for remote control)Audio Two 15 W integrated speakers Noise Level Up to 38 dBA Included Cables and Accessories 1 Country-specific power cable
1 USB 2.0 cable
4 Pens
2 Erasers
1 Remote control
1 WM-SBID-200 wall mountMounting Holes For a standard VESA 800 mm × 600 mm mounting plate
Lower mounting holes 17 7/8" (45.2 cm) from the bottom of the interactive displayMounting Bracket Depth Minimum depth of 2" (5.1 cm) for all components on the back of the interactive display for airflow iQ Experience iQ Experience iQ experience embedded in the display provides better performance without the need to install a separate appliance Included Apps and Features Customizable Home screen
Whiteboard
Browser
Screen Share
File and app libraries
Writing and drawing over any input
Freeze screen and screen shade
Automatic software updatesSoftware Included Software iQ Android-based embedded computing
One-year subscription to SMART TeamWorks Room edition
One SMART Meeting Pro software room license
Subscription to SMART Remote Management for length of SMART Assure warranty term
SMART Ink and SMART Product DriversConnectors Convenience Panel 2 USB 3.0 Type-A (for media)
1 USB 3.0 Type-B (for touch)
1 USB Type-C
1 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 supportConnector Panel 1 Accessory slot (for OPS devices, such as the optional SMART PCM8 OPS PC)
3 USB 3.0 Type-A (for media)
1 USB 2.0 Type-A (for service use only)
2 USB 3.0 Type-B (for touch)
3 HDMI 2.0 in with HDCP 1.4 and HDCP 2.2 support
1 HDMI 2.0 out
1 VGA in
1 Stereo 3.5 mm in
1 Stereo 3.5 mm out
1 S/PDIF out
2 RJ45
1 RS-232 in
1 RS-232 outBack of Display 1 AC power in
1 AC power outCable Requirements HDMI, USB 2.0, USB 3.0, USB Type-C Storage and Operating Requirements Power Requirements 100V to 240V AC, 50 Hz to 60 Hz Power Consumption at 77°F (25°C) Standby mode: <0.5 W, Normal operating: 135 W Operating Temperature 41–95°F (5–35°C) Storage Temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing Dimensions D: 4.25 in x H: 42.32 in x W: 69.01 in Weight 127.86 lb.
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
