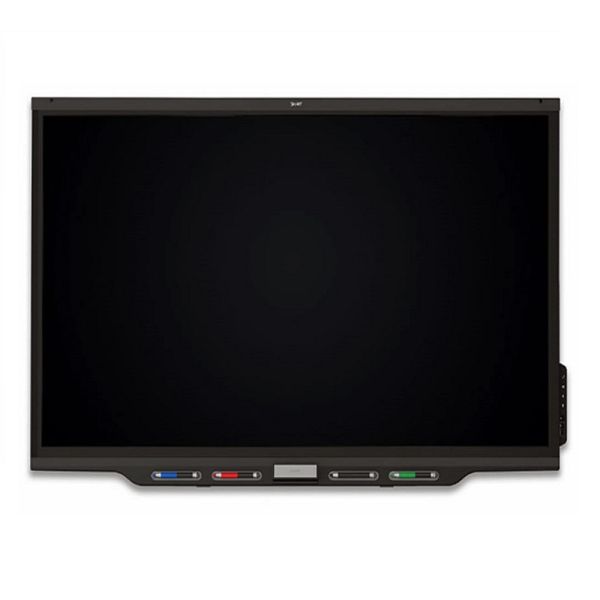

SMART SBID-7075P Pro Interactive Display w/ SMART Meeting Pro
secure transaction
- Pro interactive display w/ SMART Meeting Pro
- Series 7000 Series
- Sizes 75"
- Type LED
- Aspect ratio 16:9
- Weight 172 lb.
- Touch technology HyPr Touch (Hybrid Precision Touch) technology
- Optimal resolution 3840 × 2160 at 60 Hz
- Brightness 360 cd/m²
- Noise level <30 dBA
- Gamut 72% of NTSC
- Viewing angle178°
- Standby mode <2 W
SMART SBID-7075P Pro interactive display w/ SMART Meeting Pro
Description 75" interactive LED Series 7000 Pro Sizes 75" Weight 172 lb. Touch technology HyPr Touch (Hybrid Precision Touch) technology Multitouch capabilities Up to 10 simultaneous touch, writing and erase points Object Awareness Behavior adjusts automatically to the tool or object you’re using, whether it’s a pen, finger, eraser or palm. Type LED Aspect ratio 16:9 Optimal resolution 3840 × 2160 at 60 Hz Horizontal frequency (typical) 135 kHz Vertical frequency (typical) 60 Hz Contrast ratio (typical) 5000:1 Brightness (maximum) 360 cd/m² Pixel dimensions 0.429 mm × 0.429 mm Gamut 72% of NTSC Viewing angle 178° Response time (typical) 8 ms 1000BASE-T Ethernet Two external ports for a four-port Gigabit Ethernet switched network connecting the interactive display and the OPS module to an external network and an external device, such as a computer Presence detection Dual sensors that reduce startup time and power consumption during inactivity Audio 10 W integrated speakers (×2) Noise level <30 dBA Included cables and accessories Country-specific power cable
USB cable
Pen (×4)
EraserMounting holes For a standard VESA® 600 mm × 400 mm mounting plate
Lower mounting holes 13 3/4" (35 cm) from the bottom of the interactive displayMounting bracket depth Minimum depth of 2" (5.1 cm) for all components on the back of the interactive display for airflow Connector panel OPS slot
Stereo 3.5 mm out
S/PDIF out
VGA input connectors
VGA in
Stereo 3.5 mm in
USB Type-B
HDMI 1 input connectors
HDMI 2.0 in
USB Type-B
Display Port input connectors
DisplayPort in
USB Type-B
USB Type-A2
RJ45 (×2)Convenience panel HDMI 2 input connectors
HDMI 1.4 in
USB Type-B
USB Type-A (×2)Bottom AC power in
AC power out
RS-232 in
RS-232 outHDCP support Version 1.4/2.2 Power requirements 100V to 240V AC, 50 Hz to 60 Hz Power consumption at 77°F (25°C) Standby mode <2 W Normal operating (out-of-box) 147 W Operating temperature 41–95°F (5–35°C) Storage temperature -4–140°F (-20–60°C) Humidity 5–80% relative humidity, non-condensing
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
