PROJECTION AUDIO SYSTEM

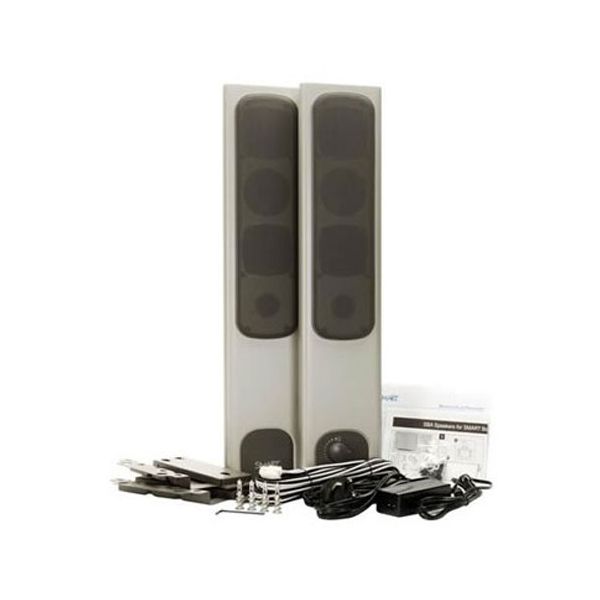

Smart SBA-L Projection Audio System

• Model: SBA-L
  Size (one speaker)	5 1/8" W × 24" H × 4" D (13 cm × 61 cm × 10.2 cm)
  Weight (both speakers)	11 lb. 14 oz. (5.4 kg)
  With brackets added	13 lb. 11 oz. (6.2 kg)
  Shipping size	12 3/4" W × 8" H × 26 1/2" D (32.4 cm × 20.3 cm × 67.3 cm)
  Shipping weight	18 lb. (8.2 kg)
  Frequency range	50 Hz to 20 kHz ± 6 dB
  Output	14 W RMS both channels
  Connectivity	Dual RCA
  Color	Dark gray and silver
  Connection panel(right speaker)	Polarized Molex® connector and 16 AWG wire with sufficient slack to discreetly route wire behind your interactive whiteboard or along the floor.
  Power requirements	Switching power supply (100V–240V AC, 50 Hz–60 Hz, 1.5A) and a 14' 9 1/8" (4.5 m) country-specific power cord (15V DC, 4000 mA, 60 VA, positive tip)
  Humidity	41°F to 95°F (5°C to 35°C) with up to 80%
  Compatible for	SMART Board 800ix, 800i5, 800i4, 600ix, 600i5 and 600i4 series interactive whiteboard systems
  Environmental compliance	EU RoHS, China EIP, EU WEEE
  Regulatory certification	CE, CSA/UL
