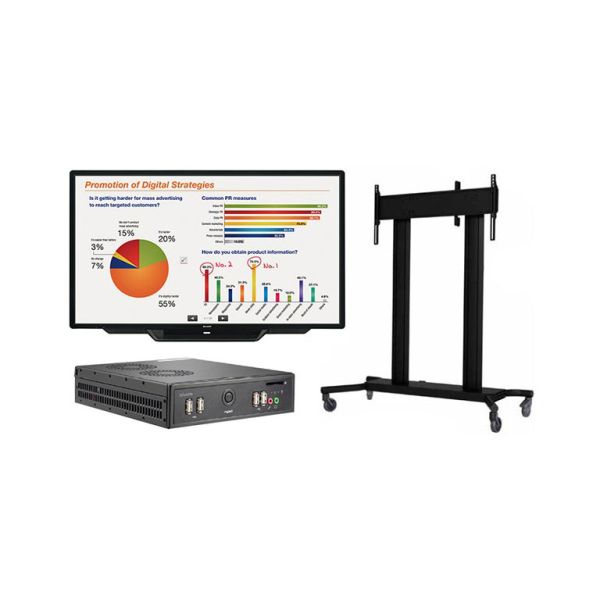

Sharp PN-L803C-PKG1 All in One Interactive Display Solution Package
secure transaction Sharp PN-L803C-PKG1 Comes Standard With:
- Package includes PN-L803C display, PN-SPCi5W7H PC, and PN-SR780M
- 80" class (80" diagonal) interactive display system
- 10-Point Capacitive Multi-Touch Screen
- Full Array LED Display
- Built-In 10W Per Channel Stereo Audio System
- Intel H81 Express Chipset
- Windows 7 Professional 64BIT (with Recovery DVD)
- 4GB RAM
- Built-In WiFi
- Internal Cable Management For Clean Clutter-Free Look
- Maneuvers Easily on Four 4.00" Swivel casters Two Locking
Sharp PN-L803C-PKG1 All in One Interactive Display Solution Package
Model: PN-L803C-PKG1 Type Interactive display package Includes PN-L803C display
PN-SPCi5W7H PC
PNZL03 floor standPN-L80C Display Installation Landscape LCD Panel 80-inch Max. Resolution 1,920 x 1,080 pixels Max. Display Colors (approx.) 1,064 million colors Pixel Pitch (H x V) 0.923 x 0.923 mm Max. Brightness (average)*2 300 cd/m 2 Contrast Ratio 3,000 : 1 Viewing Angle (H/V) 160°/160° (CR = 10) Active Screen Area (W x H) (approx.) 1,771.2 x 996.3 mm (69 3 / 4 " x 39 1 / 4 ") Response Time 6 ms (grey to grey, avg.) Backlight White LED, full array Touch Technology Optical imaging method PC Connection Port USB (1.1 standard) x 1 Power Supply PC through USB port Driver OS: Windows ® XP, Windows Vista ® , Windows ® 7 Protection Glass Thickness: Approx. 3.4 mm Touch Pen Communication: Ultrasonic communication method
Button: 2 function buttonsComputer Input Video - Analogue RGB (0.7 Vp-p) [75 ], Digital (conforms to DVI 1.0 standards)
Synchronization - Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative)
Plug & Play - VESA DDC2B
Power Management - VESA DPMS, DVI DMPMVideo Color System NTSC (3.58 MHz) / NTSC (4.43 MHz) / PAL / PAL60 / SECAM Input Terminals*5 Standard - PC analogue: Mini D-sub 15-pin x 1, HDMI x 1* 5 , 3.5 mm-diameter mini stereo jack x 1, RS-232C D-sub 9-pin x 1
With Optional PN-ZB01 - PC digital: DVI-D 24-pin x 1* 5 , PC analogue: BNC x 1* 6 * 7 , Video: BNC x 1, S-Video x 1,
Component video: BNC (Y, Cb/Pb, Cr/Pr) x 1* 6 , Audio: RCA pin (L/R) x 2Output Terminals*5 Standard - Audio: RCA pin (L/R) x 1, RS-232C D-sub 9-pin x 1
With Optional PN-ZB01 - PC digital: DVI-D 24-pin x 1* 5Speaker Output Built-in - 7 W + 7 W
External - 7 W + 7 W (6 )* 8Mounting VESA (4 points), 400 mm pitch, M6 screw Power Supply 100V – 240V AC, 50/60 Hz Power Consumption 260 W Operating Temperature 5°C to 35°C Operating Humidity 20% to 80% RH (no condensation) Dimensions (W x D x H) (approx.) (display only) (74" x 5 5/16 " x 45 9/16 ") Main Accessories Touch pen, touch pen battery (AAA size), pen tips (for touch pen) x 2, eraser, pen tray, power cord, remote control unit, batteries (AA size x 2), CD-ROM, set-up manual, terminal label, Sharp logo cover sticker, cable clamp x 3 (2 for PN-L702B), USB cable, tray mounting ?ttings x 2, tray mounting screws x 6 PN-SPCi5W7H PC Description Compact PC - i5 Quad Core Processor Intel® CoreTM i5-3475S H81 Chipset RAM 4GB, Supports up to 16BG Hard Drive 256GB SSD Dimensions 6.5"W x 1.69"H x 7.48"D PN-SR763M Rolling Cart Color Black Casters Four 4.00" (102mm) swivel casters, two locking Used for PN-L80C display
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
