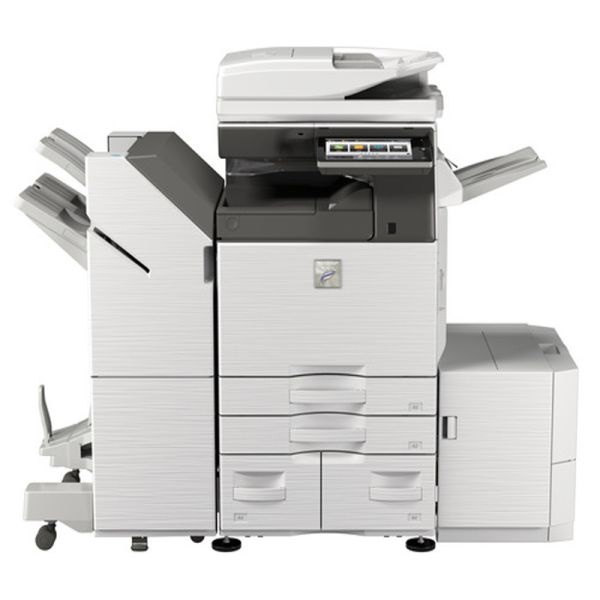

Sharp MX-M4070 B&W Workgroup Document System : MX-M4070

• Engine speed A4 (8 1/2"" x 11"")*1 Max. 40 ppm, A3 (11"" x 17"") Max. 19 ppm,
• A3W (12"" x 18"") Max. 18 ppm"
• Control panel display 10.1-inch colour LCD touchscreen
• Paper size Max. A3W (12" x 18"), min. A5 (5 1/2" x 8 1/2"*2)
• Paper weight "Tray 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover)
• Multi-bypass tray 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)"
• Warm-up time*3 14 sec.*4
• Memory 5 GB (copy/print shared) 500 GB HDD*5
• Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T
• Power requirements Rated local AC voltage ±10%, 50/60 Hz
• Dimensions (W x D x H)*7 (24 17/64" x 25 63/64" x 33")
• Weight (approx.) (158.8 lbs)

Sharp MX-M4070 B&W Workgroup Document System

• Type	Desktop
  Engine speed	A4 (8 1/2" x 11")*1 Max. 40 ppm A3 (11" x 17") Max. 19 ppm A3W (12" x 18") Max. 18 ppm
  Control panel display	10.1-inch colour LCD touchscreen
  Paper size	Max. A3W (12" x 18"), min. A5 (5 1/2" x 8 1/2"*2)
  Paper capacity (80 g/m2)	Standard 650 sheets (550-sheet tray and 100-sheet multi-bypass tray) Maximum 6,300 sheets (650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray)
  Paper weight	Tray 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) Multi-bypass tray 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)
  Warm-up time*3	18/16/14 sec.*4
  Memory	5 GB (copy/print shared)    500 GB HDD*5
  Power requirements	Rated local AC voltage ±10%, 50/60 Hz
  Power consumption	Max. 1.84 kW (220 V to 240 V), max. 1.44 kW*6 (110 V to 127 V)
  Dimensions (W x D x H)*7	616 x 660 x 838 mm (24 17/64" x 25 63/64" x 33")
  Weight (approx.)	72 kg (158.8 lbs)
  Copier
  Original paper size	Max. A3 (11" x 17")
  First copy time*8	3.5/3.7/4.5 sec.
  Continuous copy	Max. 9,999 copies
  Resolution	Scan 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi Print 1,200 x 1,200 dpi, 600 x 600 dpi,  9,600 (equivalent) x 600 dpi (depending on copy mode)
  Gradation	Equivalent to 256 levels
  Zoom range	25% to 400% (25% to 200% using DSPF) in 1% increments
  Preset copy ratios	Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E)
  Network Colour Scanner
  Scan method	Push scan (via control panel) Pull scan (TWAIN-compliant application)
  Scan speed*9	One-sided Max. 100 originals/min.
  (colour & B/W)	Two-sided Max. 200 originals/min.
  Resolution	Push scan 100, 150, 200, 300, 400, 600 dpi Pull scan 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*10
  File formats	TIFF, PDF, PDF/A, encrypted PDF, compact PDF*11, JPEG*11, XPS, searchable PDF, OOXML (docx, xlsx, pptx), text (TXT [UTF-8]), rich text (RTF)
  Scanner utility	Sharpdesk
  Scan destinations	Scan to e-mail/desktop/FTP server/network folder (SMB)/USB drive/HDD
  Document Filing
  Document filing capacity*12	Main and custom folders: 20,000 pages or 3,000 files Quick file folder: 10,000 pages or 1,000 files
  Stored jobs*13	Copy, print, scan, fax
  Storage folders	Quick file folder, main folder, custom folder (max. 1,000 folders)
  Network Printer
  Resolution	1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
  Interface	USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T
  Supported OS	Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows® 7, Windows® 8.1, Windows® 10, Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
  Network protocols	TCP/IP
  Printing protocols	LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD
  PDL	PCL 6 emulation, Adobe® PostScript® 3™
  Available fonts	80 fonts for PCL, 139 fonts for Adobe PostScript 3
