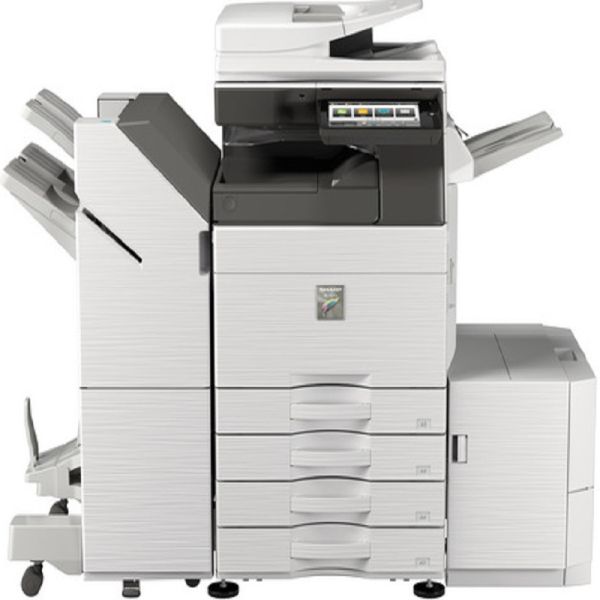

Sharp MX-4050V B&W and Color Networked Digital Multifunction Printer
- Type Color multi-function digital document system
- Touch Display Panal 10.1"
- Functions Copy, print, network print, network scan, document filing and fax1
- Memory Standard 5 GB copy/print
- Hard Disk Drive 250 GB
- Max. Original Size 11" x 17"
- Copy Size Min. 5½" x 8½", Max. 12" x 18"
- Copy Speed 40 ppm B&W/Color (8½" x 11")
- Multiple Copy Max. 9,999 copies
- Warm Up Time 10 seconds or less
- Original Feed 100-sheet RSPF with original size detection
- Original Sizes 5½" x 8½", 8½" x 11", 8½" x 11" R, 8½" x 14", 11" x 17"
- Paper Capacity Standard: 650 Sheets/Maximum: 6,300 Sheets
- Duplexing Standard automatic duplex copying and printing
- CPU Up to 1.75 GHz multi-processor design
- Interface 10/100/1000 Base-T Ethernet, USB 2.0: 2 host ports (front &rear)
- Power 110-127 V AC, 60 HZ, 15 A
- Weight Approx. 173 lbs.
- Dimensions Approx. 24" (w) x 26" (d) 33" (h)
Sharp MX-4050V B&W and Color Networked Digital Multifunction Printer
Engine speed Colour ppm (A4) 40 Engine speed B/W ppm (A4) 40 Engine speed Colour ppm (A3) 20 Engine speed B/W ppm (A3) 20 Paper size: Min.-Max. A5 - SRA3 Paper weight (g/m2) 60 - 300 Paper capacity:Std (sheets) 650 Paper capacity: Max. (sheets) 6300 Warm Up Time (sec.) 10 Memory general min/max (MB) 5120 Harddisk STD Harddisk capacity (GB) 250 Duplex STD Power requirements - rated local AC voltage (Hz) 200 - 240V, 50/60Hz Power consumption (kW) 1.84 Dimensions (Inches) 23.93" x 25.59" x 32.83" Weight (lbs) 174.16 lbs Copier Original paper size (Max.) A3 First copy out time Colour (sec.) 6.7 First copy out time B/W (sec.) 4.7 E-sort Std yes Continuous copy (Max. copies) 9999 Resolution Scan B/W (dpi) 600 x 600, 600 x 400, 600 x 300 Resolution Scan Colour (dpi) 600 x 600 Resolution Print (dpi) 600 x 600, 9600 x 600 Gradation (equivalent levels) - Colour 256 Zoom range (%) 25 - 400 Preset copy ratios 10 Document Feeder Original capacity (sheets) 100 Scanner Network Scanner (Standard / Option) STD Scan method Push scan and Pull scan yes Resolution push scan (dpi) 100, 150, 200, 300, 400, 600 Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 600, 50 to 9600 File formats TIFF, PDF, PDF/A, encrypted PDF, compact PDF, JPEG, XPS Scanner utilities Sharpdesk Scan destinations Desktop yes Scan destination FTP, Email yes Scan destination Network folder yes Scan destination USB memory yes Document Filing Document filing (Standard / Option) STD Document filing capacity- main and custom folders (pages) 20000 Document filing capacity- quick file folder (pages) 10000 Stored jobs Copy, print, scan, fax transmission Storage folders Quick file folder, main folder, custom folder (max. 1000) Confidential storage yes Resolution (dpi) 600 x 600, 9600 x 600 Network Printer (Standard / Option) STD Interface Std/Opt USB 2.0,10Base-T/100Base-TX/1000Base-T Supported OS Standard Windows Server 2008/2008R2/2012/2012R2/2016, Windows Vista, Windows 7, 8.1, 10, Mac OS X (requires MX-PK13) 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 Network protocols TCP/IP (IPv4 and IPv6) Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP PDL Std/Opt STD PCL 6 emulation; OPT Adobe® PostScript® 3™ Available fonts 80 (PCL), 139 (Adobe PostScript 3) Fax Fax (Standard / Option) OPT Compression method MH/MR/MMR/JBIG Communication protocol Super G3/G3 Transmission time (sec) 3 Modem Speed (bps) 33600 - 2400 Transmission resolution STD 203.2 x 97.8 dpi / Ultra Fine 406.4 x 391 dpi Document Size (Min) A5 Document Size (Max) A3 Memory (MB) 1024 Grey Scale levels 256 Dial Registration; rapid/speed dial 2000 Broadcast Transmission (max. destinations) 500 Finishing Output Capacity Max. 500 - 3000 Staple Capacity (sheets) Max. 65 Saddle Stitch OPT Off-set shifting STD Hole punch OPT
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
