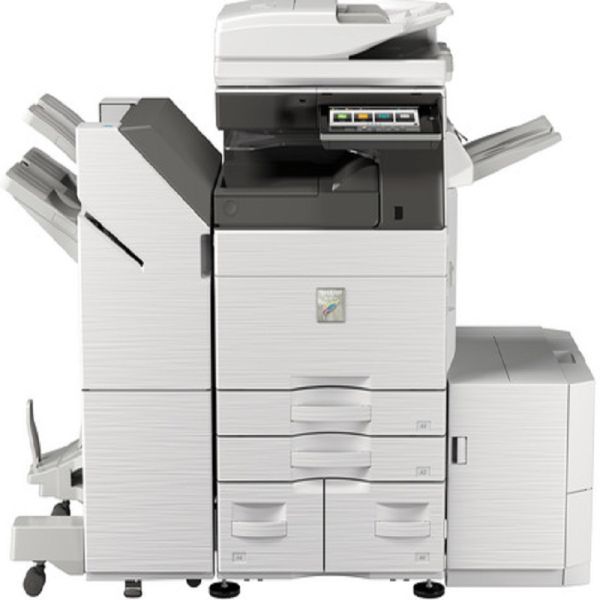

Sharp MX-3570V B&W and Color Networked Digital Multifunction Printer

• Control panel display 10.1-inch colour LCD touchscreen
• Memory Copier/Printer  5 GB
• Speed Copy/Print 35 PPM
• Hard Disk Drive 500 GB
• Paper size (Min – Max) A5*2 - SRA3
• Paper weight (g/m2) Tray 60 - 300, Multi-bypass 55 - 300,
• Paper capacity (Std – Max)Sheets 650 - 6,300, Drawers 1 - 4 (plus bypass tray)
• Resolution (dpi) 1,200 x 1,200, 600 x 600, 9,600 (equivalent) x 600
• Interface USB 2.0, 10Base-T/100Base-TX/1000Base-T
• First copy time (Full colour) 6.7 (B/W) 4.7
• Continuous copies (Max) 9,999
• Compliant regulation IEEE802.11n/g/b
• Access mode Infrastructure mode, Software AP mode
• Dimensions 24.25" x 25.98" x 32.99"
• Weight 191.80 lbs
• Power requirements Rated local AC voltage ±10%, 50/60 Hz

Sharp MX-3570V B&W and Color Networked Digital Multifunction Printer

• Engine speed Colour ppm (A4)	35
  Engine speed B/W ppm (A4)	35
  Engine speed Colour ppm (A3)	18
  Engine speed B/W ppm (A3)	18
  Paper size: Min.-Max.	A5- SRA3
  Paper weight (g/m2)	60 - 300
  Paper capacity:Std (sheets)	650
  Paper capacity: Max. (sheets)	6300
  Warm Up Time (sec.)	10
  Memory general min/max (MB)	5000
  Harddisk	STD
  Harddisk capacity (GB)	500
  Duplex	STD
  Power requirements - rated local AC voltage (Hz)	200 - 240V, 50/60Hz
  Power consumption (kW)	1.84
  Dimensions (Inches)	24.21" x 25.98" x 32.99"
  Weight (lbs)	191.80 lbs
  Copier
  Original paper size (Max.)	A3
  First copy out time Colour (sec.)	6.7
  First copy out time B/W (sec.)	4.7
  E-sort Std	yes
  Continuous copy (Max. copies)	9999
  Resolution Scan B/W (dpi)	600 x 600, 600 x 400
  Resolution Scan Colour (dpi)	600 x 600
  Resolution Print (dpi)	1200 x 1200, 600 x 600, 9600 x 600
  Gradation (equivalent levels) - Colour	256
  Zoom range (%)	25 - 400
  Preset copy ratios	10
  Document Feeder
  Original capacity (sheets)	150
  Scanner
  Network Scanner (Standard / Option)	STD
  Scan method Push scan and Pull scan	yes
  Resolution push scan (dpi)	100, 150, 200, 300, 400, 600
  Resolution pull scan (dpi)	75, 100, 150, 200, 300, 400, 600, 50 to 9600
  File formats	TIFF, PDF, PDF/A, encrypted PDF, compact PDF, JPEG, XPS, searchable PDF, Microsoft Office (pptx, xlsx, docx), text (TXT), rich text (RTF)
  Scanner utilities	Sharp Network Scanner Tool, Sharpdesk, Sharpdesk Mobile
  Scan destinations Desktop	yes
  Scan destination FTP, Email	yes
  Scan destination Network folder	yes
  Scan destination USB memory	yes
  Document Filing
  Document filing (Standard / Option)	STD
  Document filing capacity- main and custom folders (pages)	20000
  Document filing capacity- quick file folder (pages)	10000
  Stored jobs	Copy, print, direct print, scan, fax transmission
  Storage folders	Quick file folder, main folder, custom folder (max. 1000)
  Confidential storage	yes
  Printer
  Resolution (dpi)	1200 x 1200, 600 x 600, 9600 x 600
  Network Printer (Standard / Option)	STD
  Interface Std/Opt	STD USB 1.1, USB 2.0,10Base-T/100Base-TX/1000Base-T
  Supported OS Standard	Windows Server 2008/2008R2/2012/2012R2/2016, Windows Vista, Windows 7, 8.1, 10, Mac OS X (requires MX-PK13) 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
  Network protocols	TCP/IP (IPv4 and IPv6)
  Printing protocols	LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP
  PDL Std/Opt	STD PCL 6 emulation, Adobe® PostScript® 3™
  Available fonts	80 (PCL), 139 (Adobe PostScript 3)
  Fax
  Fax (Standard / Option)	OPT
  Compression method	MH/MR/MMR/JBIG
  Communication protocol	Super G3/G3
  Transmission time (sec)	3
  Modem Speed (bps)	33600 - 2400
  Transmission resolution	STD 203.2 x 97.8 dpi / Ultra Fine 406.4 x 391 dpi
  Document Size (Min)	A5
  Document Size (Max)	A3
  Memory (MB)	1024
  Grey Scale levels	256
  Dial Registration; rapid/speed dial	2000
  Broadcast Transmission (max. destinations)	500
  Finishing
  Output Capacity Max.	500 - 3000
  Staple Capacity (sheets) Max.	65
  Saddle Stitch	OPT
  Off-set shifting	STD
  Hole punch	OPT
