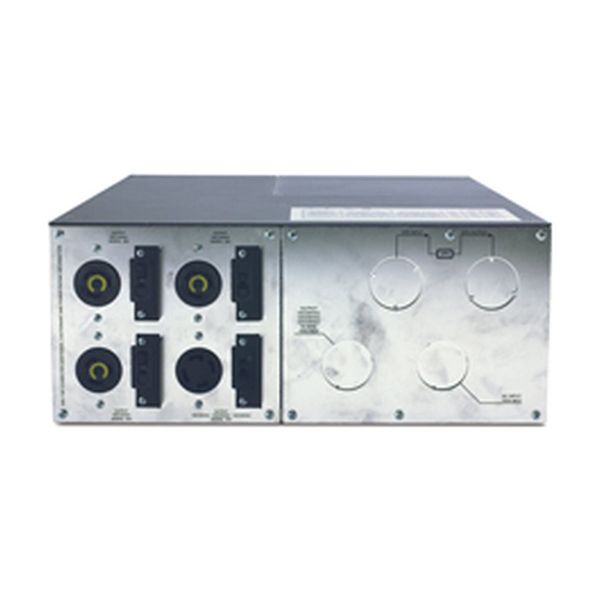

SERVICE BYPASS PANEL SYMMETRALX 200/208/240V 4-16KVA NO RETURN

Be the first to review this product

Availability: Out of stock

SKU

SBP16KRMP4U-HW

UPC Code

731304225195

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The APC SBP16KRMP4U-HW is a 208V, 100A maintenance bypass panel designed for seamless integration with Symmetra LX and Smart-UPS systems from 4kVA to 16kVA. It allows safe, uninterrupted power transfer during UPS maintenance or replacement, ensuring continuous operation of critical equipment. The 4U rack-mountable design supports both rack and wall installation, optimizing space in your data center or network room. With hardwired input and output connections, this panel delivers reliable power distribution and easy serviceability. Built to meet industry standards, it helps maximize uptime while supporting APC's sustainibility initiatives.

Specifications

General Information
Category	Power conditioning equipment
Description	SERVICE BYPASS PANEL SYMMETRALX 200/208/240V 4-16KVA NO RETURN
Manufacturer	APC by Schneider Electric
MSRP	$2,815.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	67.3 cm
Dimensions & Weight / Height	18 cm
Dimensions & Weight / Weight	23 kg
Dimensions & Weight / Width	43 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	6
Power Device / Voltage Required	AC 200/208/240 V
Product Type	Bypass switch
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	P/N: ACF201BLK, ACF202BLK, ACF402, ACF600, AR3180G, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, ISXCR1SY16K16P5, NBES0302, NBPD0121, NBPD0160, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBRK0201, NBRK0320, NBRK0320E, NBRK0551, NBWL0355, NBWL0355A, NBWL0356A, SC450RM1U, SMC1000, SMC1000-2U, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1000RM2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2U, SMT3000RM2U, SMT750RM2U, SMX1000, SMX1000I, SMX1000US, SMX1500RM2U, SMX1500RM2UNC, SMX1500RMI2U, SMX1500RMNCUS, SMX1500RMUS, SMX3000HV-BR, SMX3000LV2U-BR, SMX750, SMX750I, SMX750-NMC, SMX750US, SRT1000RMXLI, SRT10KRMXLI, SRT10RMXLIX806, SRT5KRMXLW-TW, SRT6KRMXLI, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SRYL15K15RMX LT, SUA2200RMXLI3U, SUA2200XL, SUA2200XLI, SUA2200XL-NETPKG, SUA3000RMXLI3U, SUA3000XL, SUA3000XLI, SUA3000XL-NETPKG, SUA3000XLT, SUA5000R5TXFMR, SUA5000RMI5U, SUA5000RMT5U, SUM1500RMXL2U, SUM3000RMXL2U, SURT10000RMXLT6U, SURT1000RMXLI, SURT10KRMXL6U-TF5, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT2000RMXLI, SURT20KRMXLI, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT3000XLI-ET, SURT6000RMXLT3U, SURT6000XLI, SURT6KRMXL3U-TF5, SURT8000RMXLT6U, SURT8000XLI, SURT8KRMXL6U-TF5, SURTA1500RMXL2U, SURTA2200RMXL2U, SURTA3000RMXL3U, SURTD3000RMXLT3U, SURTD3000XLI, SURTD3KRMXL3U-TF5, SURTD5000RMXLT3U, SURTD5000XLI, SYA12K16JXR, SYA12K16P, SYA12K16PXR, SYA12K16RMI, SYA12K16RMICH, SYA12K16RMJ, SYA12K16RMP, SYA16K16JXR, SYA16K16P, SYA16K16PXR, SYA16K16RMI, SYA16K16RMICH, SYA16K16RMJ, SYA16K16RMP, SYA4K8P, SYA4K8RMI, SYA4K8RMJ, SYA4K8RMP, SYA8K16JXR, SYA8K16P, SYA8K16PX798, SYA8K16PXR, SYA8K16PXRX798, SYA8K16RMI, SYA8K16RMICH, SYA8K16RMJ, SYA8K16RMP, SYA8K8P, SYA8K8RMI, SYA8K8RMJ, SYA8K8RMP, SYA8K8RMPNX424, SYAF16KBXRMT, SYAF16KRMICH, SYAF16KRMT, SYAF8KRMT, SYH6K6RMJ-TF3
Dimensions & Weight
Depth	67.3 cm
Height	18 cm
Weight	23 kg
Width	43 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	50 °C
Min Operating Temperature	-20 °C
General
Color	Black
Device Type	Bypass switch - rack-mountable
Height (Rack Units)	4U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	CSA, GOST, EN 60950, UL 1778, IEC 60950
Rack Mounting Kit	Included
Power Device
Frequency Provided	50/60 Hz
Frequency Required	50/60 Hz
Input Connectors	Hardwire
Input Voltage	AC 200/208/240 V
Output Voltage	AC 220/230/240 V 50/60 Hz
Power Output Connectors Details	1 x power NEMA L14-30R 3 x power NEMA L5-20R 1 x hardwire 3-wire (2PH + G) 1 x hardwire 4-wire (2PH+N+G)
