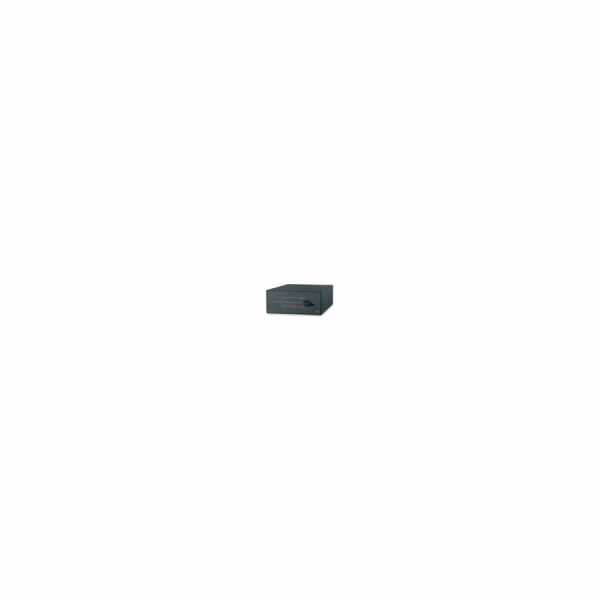

SERVICE BYPASS PANEL 208/240VHARDWIRED I/O MBB 100A 200 NO RETUR

Be the first to review this product

Availability: Out of stock

SKU

SBP16KP

UPC Code

731304212645

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The APC Service Bypass Panel support voltage of 200V, 208V, and 240V. It features a 4U rack-mount design and is rack mountable. It includes an installation guide, rack mounting brackets, and a user manual.

Specifications

General Information
Category	Power conditioning equipment
Description	SERVICE BYPASS PANEL 208/240VHARDWIRED I/O MBB 100A 200 NO RETUR
Manufacturer	APC by Schneider Electric
MSRP	$2,795.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	66 cm
Dimensions & Weight / Height	17.8 cm
Dimensions & Weight / Weight	21.4 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	3
Power Device / Voltage Required	AC 200/240 V
Product Type	Bypass switch
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	P/N: ISXCR1SY16K16P5, SRT10KRMXLI, SRT10KXLI, SRT10RMXLIX806, SRT8KRMXLI, SRT8KXLI, SRYL15K15RMX LT, SURT10000RMXLI, SURT10000RMXLT, SURT10000RMXLT-2TF5, SURT10000RMXLT6U, SURT10000XLI, SURT10000XLI-CC, SURT10000XLICH, SURT10000XLT, SURT10000XLT-1TF10K, SURT10000XLT-2TF3, SURT10KRMXL6U-TF5, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT15KUXICH, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT7500RMXLI, SURT7500RMXLT, SURT7500RMXLT-1TF5, SURT7500XLI, SURT7500XLT, SURT7500XLT-1TF3, SURT8000RMXLI, SURT8000RMXLI-CC, SURT8000RMXLT, SURT8000RMXLT-1TF5, SURT8000RMXLT6U, SURT8000XLI, SURT8000XLICH, SURT8000XLT, SURT8000XLT-1TF3, SURT8000XLTW, SURT8KRMXL6U-TF5, SY12KEX3I, SY12KEXI, SY12KEXIBX120, SY16K3I, SY16K3IBX120, SY16KI, SY16KIBX120, SY4KEXI, SY8KEX3I, SY8KEX3IBX120, SY8KEXI, SY8KEXIBX120, SY8KI, SYA12K16I, SYA12K16ICH, SYA12K16IXR, SYA12K16IXRCH, SYA12K16JXR, SYA12K16P, SYA12K16PXR, SYA12K16RMI, SYA12K16RMICH, SYA12K16RMJ, SYA12K16RMP, SYA16K16I, SYA16K16ICH, SYA16K16IXR, SYA16K16IXRCH, SYA16K16JXR, SYA16K16P, SYA16K16PXR, SYA16K16RMI, SYA16K16RMICH, SYA16K16RMJ, SYA16K16RMP, SYA4K8I, SYA4K8P, SYA4K8RMI, SYA4K8RMJ, SYA4K8RMP, SYA8K16I, SYA8K16ICH, SYA8K16IXR, SYA8K16JXR, SYA8K16P, SYA8K16PX798, SYA8K16PXR, SYA8K16PXRX798, SYA8K16RMI, SYA8K16RMICH, SYA8K16RMJ, SYA8K16RMP, SYA8K8I, SYA8K8P, SYA8K8PX798, SYA8K8RMI, SYA8K8RMJ, SYA8K8RMP, SYA8K8RMPNX424, SYAF16KT, SYAF16KXR3J, SYAF16KXR9T, SYP12K12RMI, SYP12K12RMT, SYP12K12RMT-2TF2, SYP12K12RMT-2TF3, SYP12K12RMT-P1, SYP12K12RMT-P2, SYP8K12RMI, SYP8K12RMT, SYP8K12RMT-2TF3, SYP8K12RMT-P1, SYPF12KT
Dimensions & Weight
Depth	66 cm
Height	17.8 cm
Weight	21.4 kg
Width	43.2 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Humidity Range Storage	0 - 95%
Max Operating Temperature	50 °C
Max Storage Temperature	65 °C
Min Operating Temperature	-20 °C
Min Storage Temperature	-40 °C
General
Color	Black
Device Type	Bypass switch - rack-mountable
Height (Rack Units)	4U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - parts - 2 years
Miscellaneous
Compliant Standards	CSA, UL, GOST, EN 60950, UL 1778, IEC 60950, REACH
Rack Mounting Kit	Included
Power Device
Frequency Required	50/60 Hz
Input Connectors	4 x hardwire 3-wire (HN + E), hardwire 3-wire (2PH + G), hardwire 4-wire (2PH+N+G), hardwire 5-wire (3PH + N + G)
Input Voltage	AC 200/240 V
Output Voltage	AC 200/240 V
Power Output Connectors Details	1 x hardwire 3-wire (HN + E) 1 x hardwire 3-wire (2PH + G) 1 x hardwire 4-wire (2PH+N+G)
Sustainability Information
Packaging Recycled Content	Made of recycled cardboard
