SERVICE BYPASS PANEL 200/208/240V 2XL6-30R 2XL6-20R NO RETURN

Be the first to review this product

Availability: Out of stock

SKU

SBP5000RMT2U

UPC Code

731304212584

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

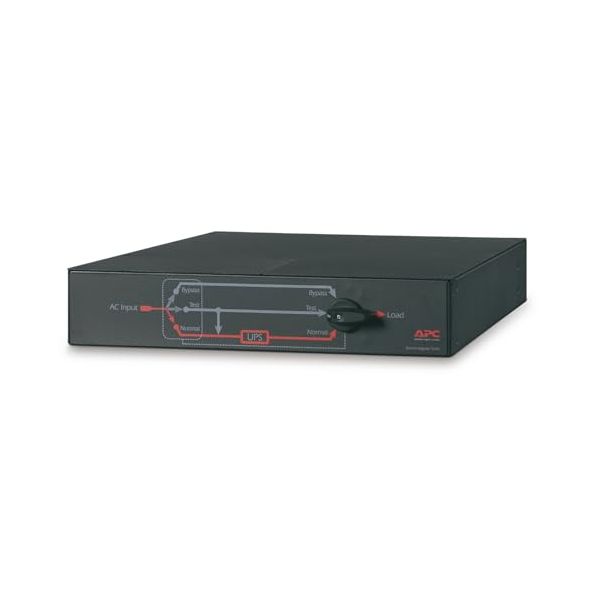

The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.

Specifications

General Information
Category	Power conditioning equipment
Description	SERVICE BYPASS PANEL 200/208/240V 2XL6-30R 2XL6-20R NO RETURN
Manufacturer	APC by Schneider Electric
MSRP	$1,685.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	66 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Weight	13.6 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	4
Power Device / Voltage Required	AC 200/208/240 V
Product Type	Bypass switch
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	APC Smart-UPS 3000VA USB & Serial, 3000VA XL, 5000VA, 5000VA XL
Dimensions & Weight
Depth	66 cm
Height	8.9 cm
Weight	13.6 kg
Width	43.2 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Humidity Range Storage	0 - 95%
Max Operating Temperature	50 °C
Max Storage Temperature	65 °C
Min Operating Temperature	-20 °C
Min Storage Temperature	-25 °C
General
Color	Black
Cord Length	3.05 m
Device Type	Bypass switch - rack-mountable
Height (Rack Units)	2U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - parts - 2 years
Miscellaneous
Cables Included	Power cable 3.05 m
Compliant Standards	CSA, UL, GOST, EN 60950, UL 1778, IEC 60950
Pricing Type	APC Take-Back
Rack Mounting Kit	Included
Power Device
Frequency Required	50/60 Hz
Input Connectors	Power NEMA L6-30
Input Voltage	AC 200/208/240 V
Output Voltage	AC 200/208/240 V
Power Output Connectors Details	2 x power NEMA L6-20 2 x power NEMA L6-30
