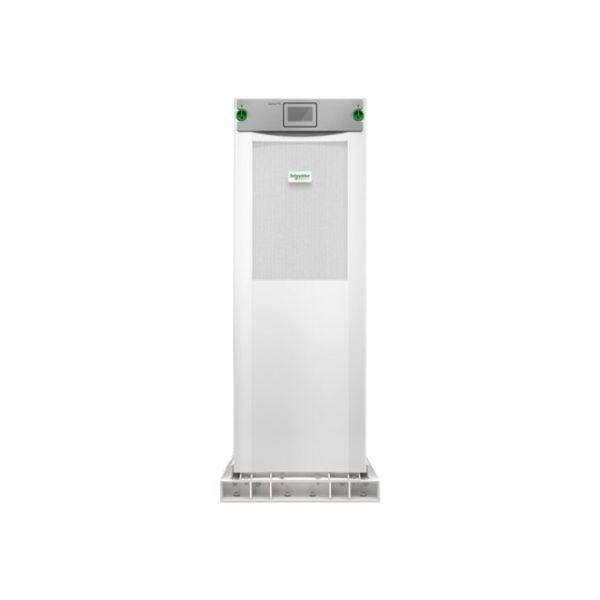

Schneider Electric Galaxy VS

Be the first to review this product

Availability: Out of stock

SKU

GVSUPS80KMHS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Highly efficient, easy-to-deploy 80kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownerJTFp to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.

Specifications

General Information
Category	Business software
Description	Schneider Electric Galaxy VS - UPS - halogen-free cables, marine certified - AC 380/400/415 V - 80 kW - 80000 VA - 3-phase - no battery - white - with Start-Up Service 5X8
Manufacturer	APC by Schneider Electric
MSRP	$55,645.00
UNSPSC	43231500
Main Specifications
Dimensions & Weight / Depth	84.7 cm
Dimensions & Weight / Height	148.5 cm
Dimensions & Weight / Weight	250 kg
Dimensions & Weight / Width	52.1 cm
General / Subcategory	UPS
Header / Brand	Schneider
Miscellaneous / Product Color	White
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Power Capacity (VA)	80000 VA
Power Device / Voltage Required	AC 380/400/415 V
Product Type	UPS
Service & Support / Type	1-year warranty
Battery
Type	No battery
Dimensions & Weight
Depth	84.7 cm
Height	148.5 cm
Weight	250 kg
Width	52.1 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	99 cm
JTFpping Height	168 cm
JTFpping Weight	290 kg
JTFpping Width	64 cm
Environmental Parameters
Humidity Range Operating	0 - 95% RH (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	68 dBA
General
Bundled Services	Start-Up Service 5X8
Color	White
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - on-site
Miscellaneous
Compliant Standards	FCC Part 15 A, IP21, EN 62040-2, EN 62040-1, UL 1778 5th edition, IEC 60721-4-2 level 2M2
Features	Touch screen interface, audible alarm, LCD display, built-in static bypass, visible alarm, VRLA battery support, EcoStruxure Ready, halogen-free cables
Included Accessories	Dust filter
Power Device
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Voltage	AC 380/400/415 V
Input Voltage Margin	± 10%
Input Voltage Range	AC 340 - 460 V
Input Wiring	3-phase
Output Voltage	AC 400 V ± 1% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	80 kW / 80000 VA
Power Factor (PF)	0.7
Total Harmonic Distortion (THD)	3 %
