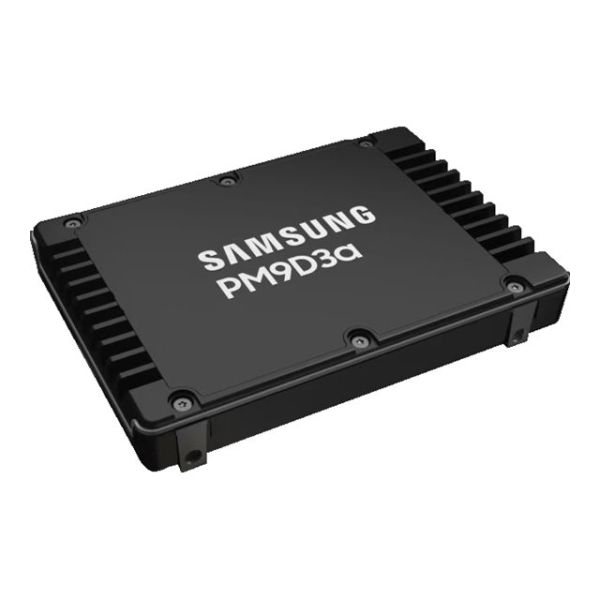

Samsung PM9D3a - SSD
The Lenovo Samsung PM9D3a is a solid state drive ideal for data-intensive applications. With a storage capacity of 7.68 TB, this drive ensures rapid performance with an internal data rate of up to 12,000 MBps and impressive IOPS metrics for efficient read and write operations. Designed with features like end-to-end data protection and an Advanced ECC Engine, it delivers reliability and data integrity through innovative technology. This drive operates effectively in various environmental conditions, with a maximum operating temperature of 70°C and a minimum storage temperature of -40°C. The robust design of the Lenovo PM9D3a includes hot-swap capabilities for easy replacement without downtime. With hardware encryption and compliance with multiple standards, this SSD serves both enterprise and personal use, capable of handling the demands of modern computing environments.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung PM9D3a - SSD - Read Intensive - encrypted - 7.68 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.02 |
| Manufacturer | Lenovo |
| MSRP | $16,899.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 170 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 7.68 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Capacity | 7.68 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Triple-level cell (TLC), Advanced ECC Engine, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Weight | 170 g |
| Width | 70 mm |
| Miscellaneous | |
| Compliant Standards | cUL, TUV-GS, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 2000000 IOPS |
| 4KB Random Write | 300000 IOPS |
| Average Latency | 9 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 12000 MBps (read) / 6200 MBps (write) |
| SSD Endurance | 14016 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,500,000 hours |
| Recoverable Errors | 1 per 10^17 |
