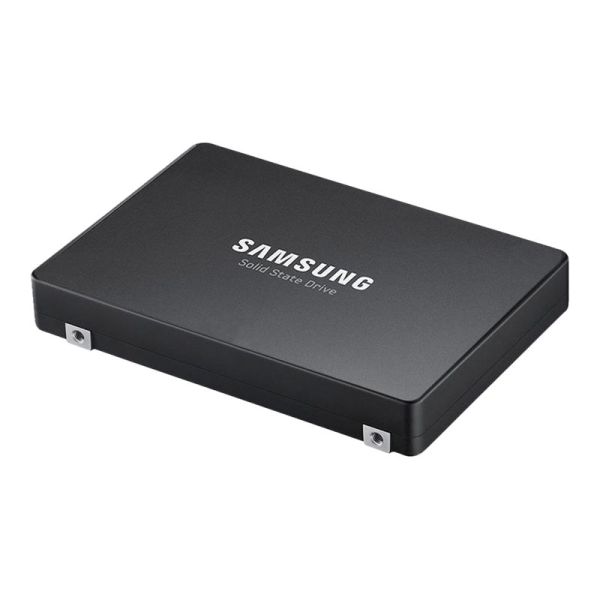

Samsung PM1733a - SSD

Availability: Out of stock
SKU
4XB7A81954
UPC Code
889488632336
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Discover reliability and performance with the Lenovo Samsung PM1733a solid state drive. Designed for read-intensive applications, this 2.5" hot-swap hard drive boasts a substantial 15.36 TB capacity, making it ideal for data centers and storage-intensive tasks. It offers exceptional read and write speeds of up to 7500 MBps and 4100 MBps, respectively, along with high IOPS, ensuring swift data access and transfer rates that enhance system responsiveness. Advanced security features, including self-encrypting technology and TCG Opal Encryption, provide robust data protection. The drive's durability is further underscored by its ability to operate in extreme temperatures and withstand significant shock and vibration, ensuring stable performance in demanding environments. With its advanced power loss protection architecture, it also promotes energy-efficient operation, making it a cost-effective solution for large-scale storage needs.
General Information
CategoryHard drives
DescriptionSamsung PM1733a - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED) - for ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5"); SR655 7Y00 (2.5"), 7Z01 (2.5")
ManufacturerLenovo
MSRP$38,599.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth100 mm
Dimensions & Weight / Height15 mm
Dimensions & Weight / Weight190 g
Dimensions & Weight / Width70 mm
Hard Drive / Capacity15.36 TB
Hard Drive / Form Factor2.5"
Hard Drive / Hard Drive TypeHot-swap hard drive
Hard Drive / InterfaceU.3 PCIe 4.0 x4 (NVMe)
Hard Drive / InterfaceU.3 PCIe 4.0 x4 (NVMe)
Header / BrandSamsung
Miscellaneous / Product ColorBlack
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Compatibility Information
Designed For
  • Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
  • Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Environmental Parameters
Max Operating Temperature70 °C
Max Storage Temperature85 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)20 g @ 10-2000 Hz
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x U.3 PCIe 4.0 x4 (NVMe)
General
Capacity15.36 TB
Depth100 mm
Device TypeSolid state drive - hot-swap
FeaturesAdvanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, S.M.A.R.T.
Form Factor2.5"
Hardware EncryptionYes
Height15 mm
InterfaceU.3 PCIe 4.0 x4 (NVMe)
NAND Flash Memory TypeTriple-level cell (TLC)
Weight190 g
Width70 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardscUL, TUV GS, CB, BSMI, KC, VCCI, RCM, FCC, IC
Performance
4KB Random Read1600000 IOPS
4KB Random Write170000 IOPS
Drive ClassRead Intensive
Drive Writes Per Day (DWPD)1
Internal Data Rate7500 MBps (read) / 4100 MBps (write)
SSD Endurance28032 TB
Power
Power Consumption
  • 19 watt (read)
  • 20.5 watt (write)
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Software & System Requirements
OS RequiredMicrosoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2, VMware vSphere Hypervisor 7.0 (ESXi) Update 3
