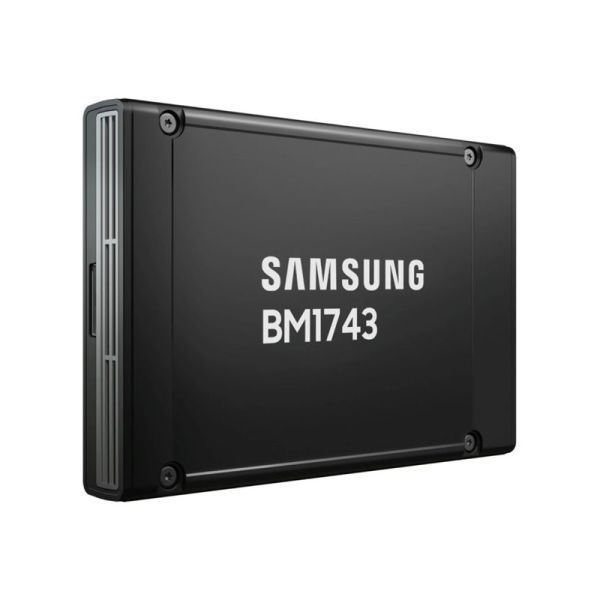

Samsung BM1743 - SSD
The Lenovo Samsung BM1743 is a robust 2.5-inch hot-swap solid state drive engineered for high-performance storage needs. With a capacity of 30.72 TB, this drive ensures ample space for extensive data storage and rapid access, making it suitable for enterprise environments that require reliability and speed. It boasts an internal data rate of 14,200 MBps, allowing for fast data transfers. Enhanced with quad-level cell (QLC) technology and V-NAND Technology, it provides efficient read-intensive performance suitable for demanding applications.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung BM1743 - SSD - Read Intensive - encrypted - 30.72 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.0, Self-Encrypting Drive (SED) |
| Manufacturer | Lenovo |
| MSRP | $50,559.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 mm |
| Dimensions & Weight / Height | 1.5 mm |
| Dimensions & Weight / Weight | 160 g |
| Dimensions & Weight / Width | 7 mm |
| Hard Drive / Capacity | 30.72 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Capacity | 30.72 TB |
| Depth | 10 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Quad-level cell (QLC), Advanced ECC Engine, End-to-end data protection, V-NAND Technology, advanced power loss protection architecture, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 1.5 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Weight | 160 g |
| Width | 7 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | cUL, TUV-GS, CB, EMC, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 1780000 IOPS |
| 4KB Random Write | 115000 IOPS |
| Average Latency | 20 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.26 |
| Internal Data Rate | 14200 MBps (read) / 2000 MBps (write) |
| SSD Endurance | 14576 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2500000 hours |
| Recoverable Errors | 1 per 10^17 |
