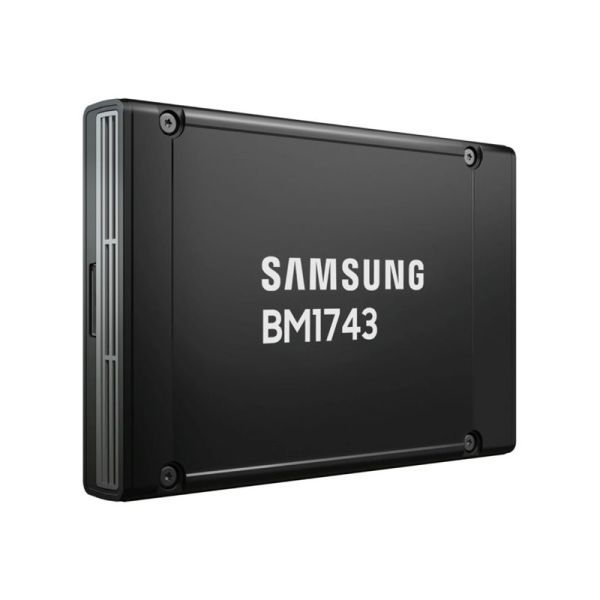

Samsung BM1743 - SSD
The Lenovo Samsung BM1743 solid state drive offers a storage capacity of 15.36 TB, ideal for data-intensive applications. With an internal data rate of 14,200 MBps, this drive ensures quick data access and seamless performance for high-demand environments. The advanced power loss protection architecture enhances data integrity, while the end-to-end data protection feature adds a layer of security to your valuable information. Designed for versatility, this 2.5-inch hot-swap drive is equipped with a U.2 PCIe 5.0 x4 interface, providing compatibility with a wide range of systems. The drive also has reliability metrics, featuring an MTBF of 2,500,000 hours and SSD endurance of 7,288 TB. These specifications make it a choice for businesses looking to enhance their data storage capabilities with durability and performance in mind.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung BM1743 - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.0, Self-Encrypting Drive (SED) |
| Manufacturer | Lenovo |
| MSRP | $31,559.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 mm |
| Dimensions & Weight / Height | 1.5 mm |
| Dimensions & Weight / Weight | 160 g |
| Dimensions & Weight / Width | 7 mm |
| Hard Drive / Capacity | 15.36 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Capacity | 15.36 TB |
| Depth | 10 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Quad-level cell (QLC), Advanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 1.5 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Weight | 160 g |
| Width | 7 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | cUL, TUV-GS, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 1500000 IOPS |
| 4KB Random Write | 80000 IOPS |
| Average Latency | 20 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.26 |
| Internal Data Rate | 14200 MBps (read) / 1400 MBps (write) |
| SSD Endurance | 7288 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2500000 hours |
| Recoverable Errors | 1 per 10^17 |
