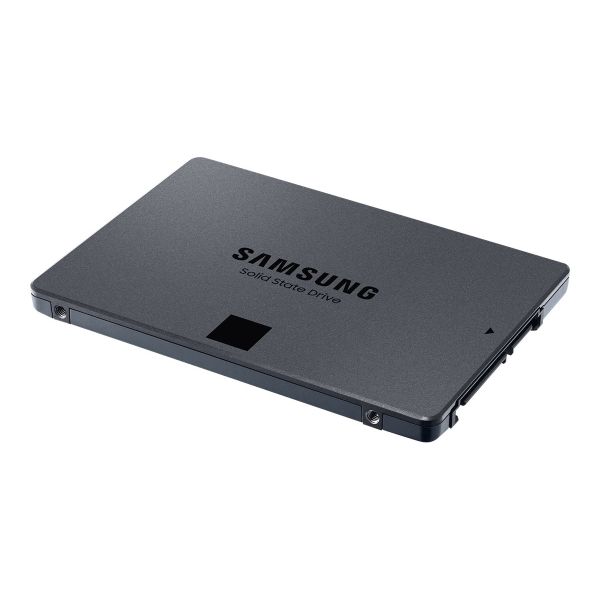

Samsung 870 QVO MZ-77Q8T0B
technology that delivers fast read/write speeds of 560/530 MB/s*. V-NAND reliability backed by up to 3-year or 2,880 TBW warranty
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung 870 QVO MZ-77Q8T0B - Solid state drive - encrypted - 8 TB - internal - 2.5" - SATA 6Gb/s - buffer: 8 GB - 256-bit AES - TCG Opal Encryption |
| Manufacturer | Samsung |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 6.8 mm |
| Dimensions & Weight / Weight | 57 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 8 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| General | |
| Buffer Size | 8 GB |
| Capacity | 8 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, Garbage Collection technology, sleep mode, Worldwide Name (WWN), TurboWrite Technology, Low Power DDR4 SDRAM Cache, Samsung MKX Controller, Samsung V-NAND 4bit MLC Technology, 1 GB Low Power DDR4 SDRAM Cache, S.M.A.R.T., 256-bit AES, IEEE 1667 |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 6.8 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Weight | 57 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Performance | |
| 4KB Random Read | 11000 IOPS |
| 4KB Random Write | 35000 IOPS |
| Internal Data Rate | 560 MBps (read) / 530 MBps (write) |
| Maximum 4KB Random Read | 98000 IOPS |
| Maximum 4KB Random Write | 88000 IOPS |
| SSD Endurance | 2.88 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Software & System Requirements | |
| Software Included | Samsung Magician Software 6.1 |
