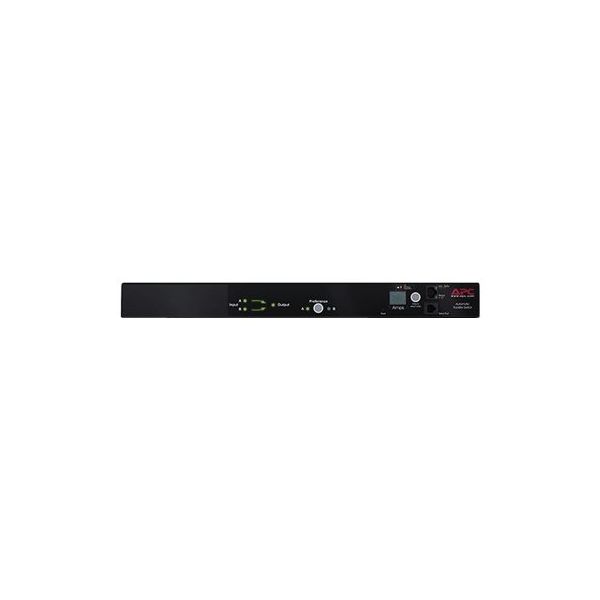

RACK ATS 230V 16A 2IEC 309INIEC 309OUT
APC Rack Automatic Transfer Switch (Rack ATS) provides reliable, redundant rack mount power to single-corded equipment. The Rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via web, SNMP, or Telnet interfaces.
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | RACK ATS 230V 16A 2IEC 309INIEC 309OUT |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,170.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.6 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.21 kg |
| Dimensions & Weight / Width | 43.2 cm |
| General / Subcategory | Power converters, splitters and accessories |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet |
| Packaged Quantity | 1 |
| Power Device / Power Capacity (VA) | 3840 VA |
| Power Device / Voltage Required | AC 200/208/230 V |
| Product Type | Bypass switch |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 4.21 kg |
| Width | 43.2 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 34.9 cm |
| JTFpping Height | 11.4 cm |
| JTFpping Weight | 5.95 kg |
| JTFpping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| General | |
| Color | Black |
| Device Type | Bypass switch |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 3 x power cable 0.91 m |
| Compliant Standards | TUV, C-Tick, GOST, VCCI Class A ITE, EN55024, EN55022 Class A, REACH |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60309 16A |
| Input Voltage | AC 200/208/230 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 16 A |
| Power Capacity | 3840 VA |
| Power Output Connectors Details | 1 x power IEC 60309 16A |
