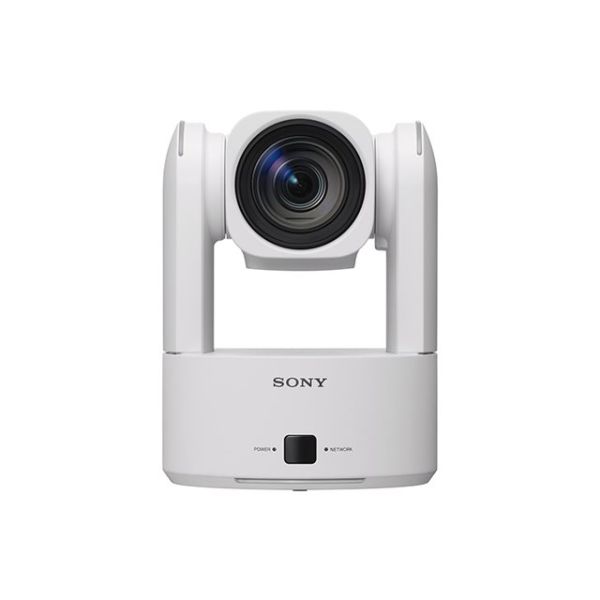

Sony BRC-AM7 - Surveillance camera
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Sony BRC-AM7 - Surveillance camera - PTZ - color - 3840 x 2160 - audio - 12G-SDI, 3G-SDI, HDMI - AVC-LongG, HEVC, XAVC HS, XAVC S, XAVC S-I - DC 12 V / PoE Plus Class 4 |
| Manufacturer | Sony |
| MSRP | $16,280.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.52 cm |
| Dimensions & Weight / Height | 19.23 cm |
| Dimensions & Weight / Weight | 3.7 kg |
| Dimensions & Weight / Width | 16.87 cm |
| Header / Brand | Sony |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 720 x 480, 720 x 576 |
| Digital Video Format | AVC-LongG, HEVC, XAVC HS, XAVC S, XAVC S-I |
| Digital Zoom | 40 |
| Exposure Range | 1/8000 sec |
| Features | Built-in optical ND filters, Phase Detection Auto Focus (PDAF), contrast detection AF, PTZ Auto Framing, 1/4"-20 UNC mounting, 3/8"-20 UNC mounting, tally light, PoE++ support, S-Log3 gamma setting, S-Cinetone, 709tone compatibility, ITU709 compatibility, Subject tracking technology, human pose estimation, face detection |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 3840 x 2160 |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080p, 4K/60p, 720p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | CFexpress, SD Memory Card |
| General | |
| Audio Formats | LPCM |
| Audio Support | Yes |
| Depth | 22.52 cm |
| Device Type | Surveillance camera |
| Height | 19.23 cm |
| Weight | 3.7 kg |
| Width | 16.87 cm |
| Image Sensor | |
| Type | Exmor RS CMOS |
| Interfaces | |
| Network Protocols | RTSP, RTMP, VISCA, SRT, NDI HX |
| Video | 12G-SDI, 3G-SDI, HDMI |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Android, iPadOS, MacOS, Windows |
| Lens Construction | |
| Horizontal Field of View (degree) | 75 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 10 mm |
| Optical Zoom | 20 x |
| Miscellaneous | |
| Color | White |
| Compliant Standards | PoE+ Type 4 Class 8 |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Power | |
| Power Device | Power adapter - external |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
