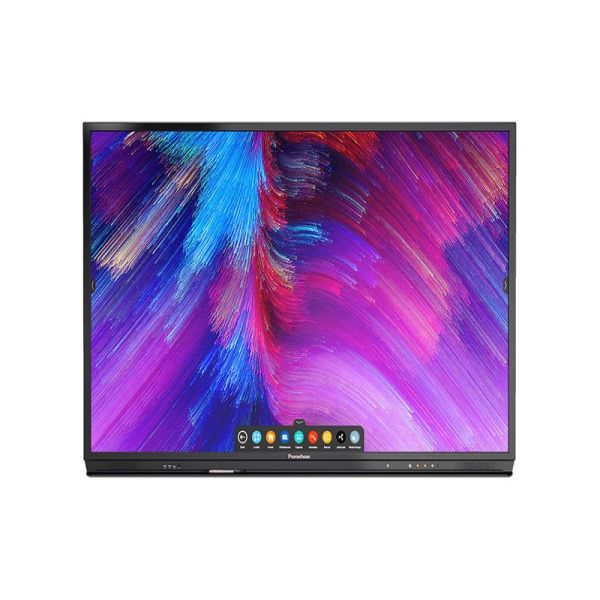

Promethean AP7E-U86-NA-1 86" ActivPanel Nickel Interactive Display
secure transaction
- 4K UHD (3840 x 2160 @ 60 Hz) resolution
- 86" diagonal size
- Internet-ready and packed with teaching tools
- All-in-one, reliable solution for schools
- Collaborate with up to 15 simultaneous touch points
- Dual, front-facing speakers provide clear and rich audio
- Easy device connectivity
- Wi-Fi connectivity
- 2 GB of RAM and 16 GB of storage
- Powerful lesson delivery software
- Panel Dimensions 79.4 x 48.7 x 4.4 in
- Net Weight 181 lbs
Price
$560.30
List Price
$709.00
Savings
39.21%
| |||
Price
$560.30
List Price
$709.00
Savings
39.21%
| |||
Price
$1,121.90
List Price
$1,429.00
Savings
39.61%
| |||
Price
$1,121.90
List Price
$1,429.00
Savings
39.61%
|
Promethean AP7E-U86-NA-1 86" ActivPanel Nickel Interactive Display
-
DISPLAY Diagonal Size 86" 4K Screen Type TFT LCD (Direct LED Backlight) Aspect Ratio 16:09 Display Area 86" 4K: 1895 x 1066 mm (74.6 x 41.9 in) Display Colors 1.07 Billion Resolution 4K UHD (3840 x 2160 @ 60 Hz) Response Time 8 ms Panel Refresh Rate 60 Hz LED Lifespan 50,000 hours LCD Viewing Angle 178° Brightness 86” 4K: 400 cd/m2 Contrast Ratio 4000:1 Ambient Light Sensor Yes Glass Hardness 9H (pencil), 7 (Mohs) Glass Type Heat-tempered, Anti-Glare CONNECTIVITY HDMI® 2.0 In (Rear) 1 HDMI 2.0 In (Front) 1 VGA In 1 VGA Audio In 1 USB-A 2.0 (Rear) 1 USB-A 2.0 (Front) 1 USB-A 3.0 (faster data transfer, Front) 1 (OPS) USB-B Touch (Rear) 1 USB-B Touch (Front) 1 USB-C PD2.0, USB 2.0, DP1.2 (Rear) 1 LAN In (RJ45) 1x 10/100 Mbps LAN Out (RJ45) 1x 10/100 Mbps Wake-on-LAN Yes Wi-Fi® Module IEEE* 802.11a/b/g/n/ Included ac Wireless, 2x2 Yes RS-232 1 CVBS 1 Mic In (3.5 mm) 1 Headphone 1 OPS Slot 1 INTERACTIVITY Front Facing Controls Yes, with Power, Menu, Volume Controls, Source Selection Touch Technology Vellum™ Writing Technology Continuous Touch Points 15 Touch Resolution 32768 x 32768 px Response Time 10 ms Touch Accuracy 1 mm Tracking Rate 4 m/s Scan Rate 100 Hz Gestures and Edge Swipes Windows® Supported Pens Included 1 Pen Type Battery-less Pen Pen Holder Integrated Full-length Pen Tray Pen Tip Diameter 3 mm Pen and Touch Differentiation No Palm Detection Yes Annotation Over Any Source Yes Classroom Essential Apps Including Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, Media Players Compatibility Windows® 8 to 10; OS X® 10.8 to 10.11;
macOS® Sierra 10.12.1 or later; Linux®
Ubuntu® 18.04 LTS; Chrome OS™COMPUTING Operating System Android™ Oreo 8 RAM 2 GB Internal Storage 16 GB CPU Quad Core: (2) ARM Cortex A73, (2) ARM
Cortex A53GPU ARM Mali-G51 MP2 Remote Over-the-Air Updates Yes Promethean Panel Management Yes AUDIO Dual Front Facing Speakers 2 x 15 Watts POWER Power Requirements 100V - 240V AC Power Consumption (Maximum) 86" 4K: 450W Power Consumption (Standby) <=0.5 W Ultra-Quiet Fanless Design Yes ENVIRONMENTAL Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -15°C to 55°C (-5°F to 131°F) Operating Humidity 20% to 80% non-condensing humidity Storage Humidity 20% to 90% non-condensing humidity PHYSICAL SPECIFICATIONS Panel Dimensions 79.4 x 48.7 x 4.4 in Net Weight 181 lbs Wall Mount Dimensions 39.8 x 28.3 x 2.0 in VESA Mount Point 27.6 x 15.7 in COMPLIANCE & CERTIFICATION Regulatory Certifications CE, FCC, IC, UL, CUL, CB, RCM Energy Star Certified 86" 4K: Yes PACKED CONTENTS What’s in the Box (1) ActivPanel Nickel
(1) 3M Length HDMI Cable
(1) 3M Length USB Cable (A-B)
(1) 3M Regional Power Cable
(1) 2M Length USB-C Cable
(1) Remote Control
(2) Batteries for Remote Control
(1) ActivPanel Nickel Pen
(1) Sealed Antistatic Bag
(4) VESA mount screws (M6)
(1) Mini PC Bracket with screws
(1) Quick Install Guide
(1) Promethean Wi-Fi Module (Ni/Co)
(2) Antenna
(1) Promethean Wi-Fi Module (Ni/Co) User Guide
(1) Wall Mount
