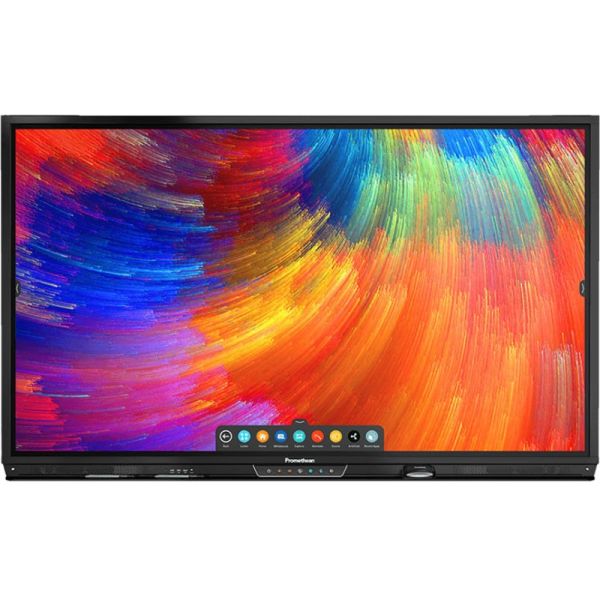

Promethean AP7-B70-NA-1 ActivPanel Titanium 70" Interactive Display
secure transactionPromethean AP7-B70-NA-1 ActivPanel Titanium 70" Interactive Display
DISPLAY Diagonal Size 70" 4K Screen Type TFT LCD (Direct LED Backlight) Aspect Ratio 16.9 Display Area 70" 4K: 1541 x 868 mm (60.7 x 34.2 in) Display Colours 1.07 Billion Resolution 4K UHD (3840 x 2160 @ 60 Hz) Response Time 8 ms Refresh Rate 120 Hz LCD Viewing Angle 178° Brightness 70" 4K: 350 cd/m2 Contrast Ratio 4000:1 Ambient Light Sensor Yes Glass Hardness 9H (pencil), 7 (Mohs) Glass Type Heat-tempered, Anti-Glare INTERACTIVITY Angled Center Console Yes, with Power, Volume Control, Menu, Freeze, No Touch, Source Selection Buttons Vellum Writing Technology Yes Continuous Touch Points 20 Touch Resolution 32768 x 32768 px Response Time Upto 5 ms Touch Accuracy 1 mm Tracking Rate 6 m/s Scan Rate 200 Hz Gestures and Edge Swipes Windows Supported Eraser Included (block eraser) 1 Pens Included 4 with Rear Erasing Feature Pen Type Battery-less Pen Pen Holder Integrated Full-length Pen Tray Pen Tip Diameter 3 mm Pen and Touch Differentiation Yes Pen Identities 2 Palm Detection Yes Annotation Over Any Source Yes Classroom Essential Apps Included Compatibility Windows 7 to 10
OS X 10.8 to 10.11
macOS Sierra 10.12.1 or later
Linux Ubuntu 18.04 LTS
Chrome OSPOWER Power Requirements 100V - 240V AC Power Consumption (Normal) 70" 4K: Upto 190W Power Consumption (Standby) Upto 0.5 W Ultra-Quiet Fanless Design Yes ENVIRONMENTAL Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -15°C to 55°C (-5°F to 131°F) Operating Humidity 20% to 80% non-condensing humidity Storage Humidity 20% to 90% non-condensing humidity PHYSICAL SPECIFICATIONS Panel Dimensions 70" 4K: 1668 x 1033 x 95 mm (65.7 x 40.7 x 3.7 in) Net Weight 70" 4K: 53 kg (117 lbs) Wall Mount Dimensions 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in) VESA Mount Point 70" 4K: 600 x 400 mm (23.6 x 15.7 in) CONNECTIVITY OPS Slot 1 HDMI In (Rear) 2 (2.0) HDMI In (Front) 1 (2.0) USB-A 2.0 (Rear) 2 USB Touch (Type B) (Rear) 3 USB Touch (Type B) (Front) 1 USB-A 3.0 (faster data transfer) (Rear) 2 USB-A 3.0 (faster data transfer) (Front) 2 LAN In (RJ45) 1x 10/100/1000 Mbps LAN Out (RJ45) 1x 10/100/1000 Mbps RS-232 Yes Wake-on-LAN Yes Wi-Fi Module Included, IEEE 802.11a/b/g/n/ac Wireless, 2x2 Bluetooth Yes (4.2) DP In 1 (1.2) HDMI Out 1 (2.0) VGA In 1 VGA Audio In 1 CVBS 1 Mic In (3.5 mm) 1 Headphone 1 Proximity Sensor for Warm Boot Yes COMPUTING Operating System Android Oreo 8 RAM 4 GB Internal Storage 64 GB (32 GB x2) CPU Quad Core: (2) ARM Cortex A73, (2) ARM
Cortex A53GPU ARM Mali-G51 MP4 Over-the-Air Updates Yes AUDIO Dual Front Facing, Bass Enhanced Speakers 70" 4K: 2 x15 Watts PACKED CONTENTS What’s in the Box (1) ActivPanel Titanium
(1) 3M Length HDMI Cable
(1) 3M Length USB cable (A-B)
(1) 3M Regional Power Cable
(1) Remote Control
(2) Batteries for Remote Control
(4) ActivPanel Titanium Pens
(1) Block Eraser
(1) Sealed Antistatic Bag
(4) VESA mount screws (M6)
(1) Mini PC Bracket with screws
(2) ActivSoundBar brackets
(1) Quick Install Guide
(1) Promethean Wi-Fi/Bluetooth Module (Ti)
(2) Antenna
(1) Promethean Wi-Fi/Bluetooth Module (Ti)
User Guide
(1) Wall Mount
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
