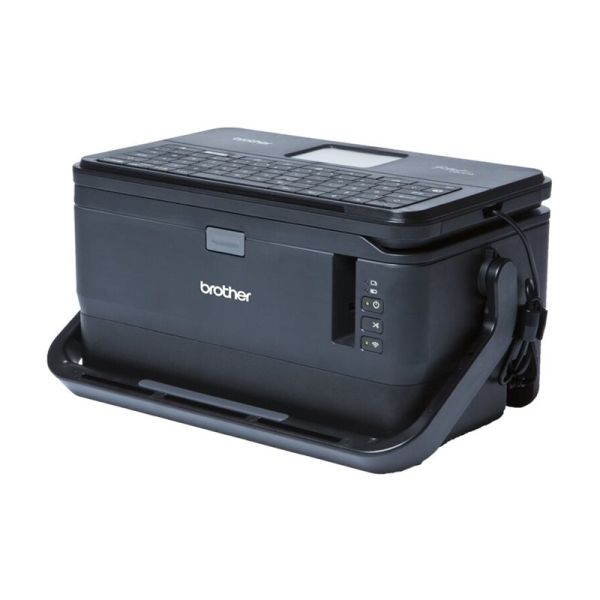

Portable Label Maker
| General Information | |
|---|---|
| Category | Label printers |
| Description | Portable Label Maker |
| Manufacturer | Brother |
| MSRP | $899.99 |
| UNSPSC | 43212113 |
| Main Specifications | |
| Height | 11.50 |
| Length | 17.00 |
| UPC | 0012502644972 |
| Width | 14.90 |
| Dimensions & Weight | |
| Depth | 18.8 cm |
| Height | 17.3 cm |
| Weight | 3.4 kg |
| Width | 33.7 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 43.5 cm |
| Height (JTFpping) | 29.6 cm |
| Weight (JTFpping) | 5.2 kg |
| Width (JTFpping) | 38.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 |
| General | |
| Printer Type | Label printer - thermal transfer - monochrome |
| Media Handling | |
| Compatible Tapes | TZe tape, HGe tape, HSe tape, FLe label |
| Max Media Size | Roll (3.6 cm) |
| Max Media Size (Custom) | 36 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (3.6 cm) |
| Media Sizes | Roll (2.4 cm), Roll (0.6 cm), Roll (1.8 cm), Roll (1.2 cm), Roll (0.9 cm), Roll (3.6 cm), Roll (0.35 cm), Roll (0.58 cm), Roll (2.36 cm), Roll (1.77 cm), Roll (1.17 cm), Roll (0.88 cm), 21 x 45 mm |
| Media Type | Laminated tape |
| Miscellaneous | |
| Media Included | 1 TZe tape cassette |
| Power | |
| Power Device | Power adapter - external |
| Printer | |
| Barcodes | Code 39, UCC/EAN-128, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, Codabar, Code 128, Postnet, PDF417, Data Matrix, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, ITF 2 of 5, EAN-8, EAN-13, RSS-14 |
| Character Sizes | 9 points, 6 points, 36 points, 24 points, 18 points, 12 points, 10 points, 14 points, 20 points, 28 points, 7 points, 11 points, 5 points, 56 points, 72 points, 48 points, 16 points, 8 points, 64 points, 40 points, 4 points, 22 points, 32 points, 80 points, 88 points, 90 points |
| Display Resolution | 4 lines x 17 characters |
| Fonts | Brussels, Florida, Helsinki, US, San Diego, Los Angeles, Calgary, Letter Gothic, Belgium, Athlanta, Adams, Sofia, Brunei, Germany |
| Interface | Wi-Fi(n), USB 2.0 |
| Keyboard | 71 keys |
| Max Resolution (B&W) | 720 x 360 dpi |
| Print Speed | Up to 60 mm/sec |
| Printer Features | Auto Power Off |
| Repeating Printing | 5000 copies |
| Styles & Effects | Vertical |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2, Apple MacOS X 10.9.x, Apple MacOS X 10.10.x, Windows 10 (32/64 bits), Apple MacOS X 10.11.x |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
