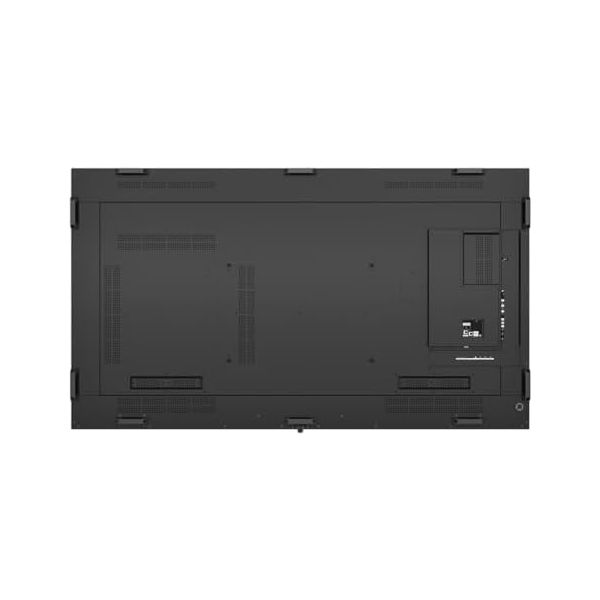

Panasonic TH-86SQE2W

Be the first to review this product

Availability: Out of stock

SKU

TH-86SQE2W

UPC Code

885170410176

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Panasonic Connect TH-86SQE2W 4K Professional Display is designed for 24-hour continuous operation and crystal-clear viewing clarity. The display provides a brightness of 500 cd/m2 with an anti-glare panel, and minimum haze treatment of 25%, reducing the reflection of ambient light and vastly improving visibility in all environments. For ultimate flexibility and a clean look without set-top-boxes or cables, the TH-86SQE2W is also equipped with a slot for the Intel SDM specification supporting applications, such as digital signage and broadcasts, using a built-in PC, terminal board, or wireless presentation system.

Specifications

General Information
Category	Flat panel displays
Description	Panasonic TH-86SQE2W - 86" Diagonal Class (85.6" viewable) - SQE2 Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - Edge LED - black
Manufacturer	Panasonic
MSRP	$7,699.00
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	8.1 cm
Dimensions & Weight / Height	110 cm
Dimensions & Weight / Width	192.9 cm
Display / Diagonal Size	86 in
Header / Brand	Panasonic
Miscellaneous / Product Color	Black
Television / Brightness	500 cd/m²
Television / Diagonal Size	86 in
Television / Diagonal Size (cm)	218 cm
Television / Display Format	4K UHD (2160p)
Television / Image Aspect Ratio	16:9
Television / Image Contrast Ratio	1100:1
Television / PC Interface	DisplayPort
Television / Resolution	3840 x 2160
Television / Type	LED-backlit LCD flat panel display
Television / Viewing Angle	178°
Audio System
Output Power / Total	24 watt
Speaker System	4 speakers
Speakers	4 x speaker - 6 watt
Connections
Connector Type	4 x HDMI input - side DisplayPort input - side HDMI output - side Audio line-in - side Infrared input - side SPDIF output - rear 2 x service - rear Serial input - bottom USB - bottom 2 x USB 2.0 - bottom LAN - bottom USB 3.0 Intel SDM (Smart Display Module) slot
Dimensions & Weight (JTFpping)
Depth (JTFpping)	38 cm
Height (JTFpping)	140.5 cm
Weight (JTFpping)	85 kg
Width (JTFpping)	216.3 cm
Dimensions & Weight Details
Dimensions & Weight Details	Without remote controller sensor - 192.9 cm x 8.1 cm x 110 cm With remote controller sensor - 192.9 cm x 8.1 cm x 111.6 cm
Display
Additional Features	Input Search Function, Dynamic Backlight Control, Real Time Clock
Brightness	500 cd/m²
Coating	Anti-glare, 28% haze
Color Support	1070000000 colors
Commercial Features	Button lock, HTML5 support, PJLink, HDMI power management, controller user level, memory viewer
Display Format	4K UHD (2160p)
Dynamic Contrast Ratio	50000:1
Image Aspect Ratio	16:9
Image Contrast Ratio	1100:1
LCD Backlight Technology	LED backlight - Edge LED
LCD Display Technology	IPS
Operation Hours / Days	24 / 7
Resolution	3840 x 2160
Response Time	8 ms
Settings Cloning Capability	Yes
Viewing Angle	178°
Viewing Angle (Vertical)	178°
Environmental Parameters
Humidity Range Operating	20 - 80% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Commercial Use	Yes - digital signage
Depth	8.1 cm
Diagonal Class	86"
Diagonal Size	85.6"
Dimensions	Without remote controller sensor
Enclosure Color	Black
HDMI Ports Qty	4 ports
Height	110 cm
Modes	Portrait mode, landscape mode
Operating System	Android OS
PC Interface	DisplayPort
Platform	Android
Power Consumption (On mode)	210 W
Power Consumption Operational	390 watt
Product Type	LED-backlit LCD flat panel display
Series	SQE2 Series
TV Tuner	No tuner
TV Tuner Presence	No
Video Interface	HDMI
Width	192.9 cm
Media Player
Supported Memory Cards	SD Memory Card, SDHC Memory Card, SDXC Memory Card
USB Port	Yes
USB Ports Qty	4
Miscellaneous
Cables Included	RS-232C cable - 1 m
Compliant Standards	EN 61000-3-2, ICES-003, FCC CFR47 Part 15 B, EN 62368-1, HDCP 2.2, EN 55032, UL 62368-1, CSA C22.2 No. 62368-1, EN61000-3-3, EN55035
Included Accessories	4 spacers, IR sensor, screw, IR sensor holder
Network & Internet Multimedia
Bluetooth Version	Bluetooth 5.1
Connect & Share	Bluetooth Human Interface Device (HID), Wireless Display
Connectivity	Wi-Fi (optional), LAN, Bluetooth (optional)
LAN Protocol	Gigabit Ethernet
Wi-Fi Protocol	802.11b, 802.11g, 802.11n, 802.11a, 802.11ac, 802.11ax
Power
Input Voltage	AC 110-240 V (50/60 Hz)
Power Consumption Stand by	0.5 watt
Power Device	Power supply
Remote Control
Battery Form Factor	AA type
Battery Included	Yes
Battery Included Qty	2
Battery Required Qty	2
Type	Remote control
Stands & Mounts
Flat Panel Mount Interface	600 x 400 mm
VESA Compatibility	Yes
