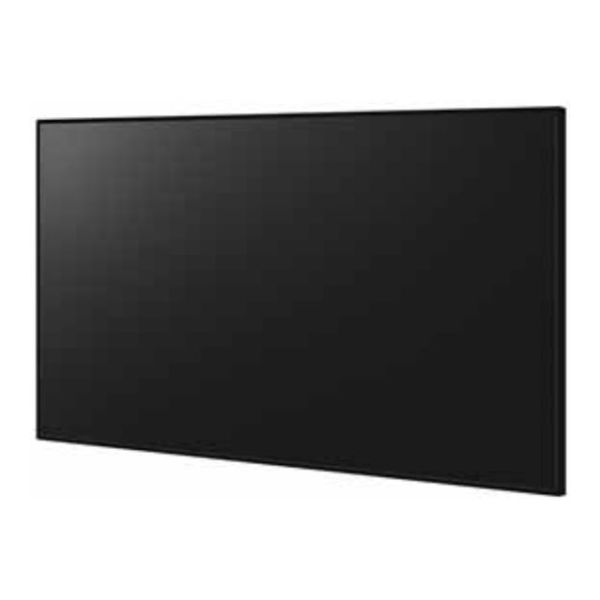

Panasonic TH-50EQ3W - 50" Diagonal Class (49.5" viewable)
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Panasonic TH-50EQ3W - 50" Diagonal Class (49.5" viewable) - EQ3 Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Direct LED - black |
| Manufacturer | Panasonic |
| MSRP | $1,499.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 64.9 cm |
| Dimensions & Weight / Weight | 13.5 kg |
| Dimensions & Weight / Width | 112.9 cm |
| Display / Diagonal Size | 50 in |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 500 cd/m² |
| Television / Diagonal Size | 50 in |
| Television / Diagonal Size (cm) | 127 cm |
| Television / Display Format | 4K UHD (2160p) |
| Television / Image Aspect Ratio | 16:9 |
| Television / Image Contrast Ratio | 5000:1 |
| Television / PC Interface | VGA (HD-15) |
| Television / Resolution | 3840 x 2160 |
| Television / Type |
|
| Television / Viewing Angle | 178° |
| TV Tuner / HDTV Tuner | Yes |
| Audio System | |
| Output Power / Total | 20 watt |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 10 watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 14.2 cm |
| Height (Shipping) | 80 cm |
| Weight (Shipping) | 19 kg |
| Width (Shipping) | 123 cm |
| Display | |
| Additional Features | Dynamic Backlight Control, AMX Device Discovery, scheduled timer |
| Backlight Life | 50,000 hour(s) |
| Brightness | 500 cd/m² |
| Coating | Anti-glare, 25% haze |
| Color Support | 1060000000 colors |
| Commercial Features | 20° tilt, HDMI power management, PC power management, remote lock, PJLink, USB File Play, USB auto-play, memory viewer |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 50000:1 |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 5000:1 |
| LCD Backlight Technology | Direct LED |
| LCD Display Technology | VA |
| Operation Hours / Days | 18 / 7 |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 6.6 cm |
| Diagonal Class | 50" |
| Diagonal Size | 49.5" |
| Enclosure Color | Black |
| Energy Class | Class G |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2363411 |
| HDMI Ports Qty | 3 ports |
| Height | 64.9 cm |
| Modes | Portrait mode, landscape mode |
| PC Interface | VGA (HD-15) |
| Picture Enhancements | Dynamic contrast |
| Power Consumption Operational | 119 watt |
| Power Consumption SDR (On mode) | 121 kWh/1000h |
| Product Type | LED-backlit LCD flat panel display |
| Series | EQ3 Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 13.5 kg |
| Width | 112.9 cm |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Miscellaneous | |
| Compliant Standards | CEC, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-19, EN 62368-1:2014, BS EN 62368-1:2014, Class A, FCC 47 CFR Part 15 Subpart B, ICES-003 issue 7, EN 55032:2015, EN 55032:2015/A11:2020, EN 55035:2017, EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013 |
| Included Accessories | Usb cover, 2 x clampers |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Power | |
| Input Voltage | AC 110-240 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.3 watt |
| Power Consumption Stand by | 0.5 watt |
| Power Device | Power supply |
| Remote Control | |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
