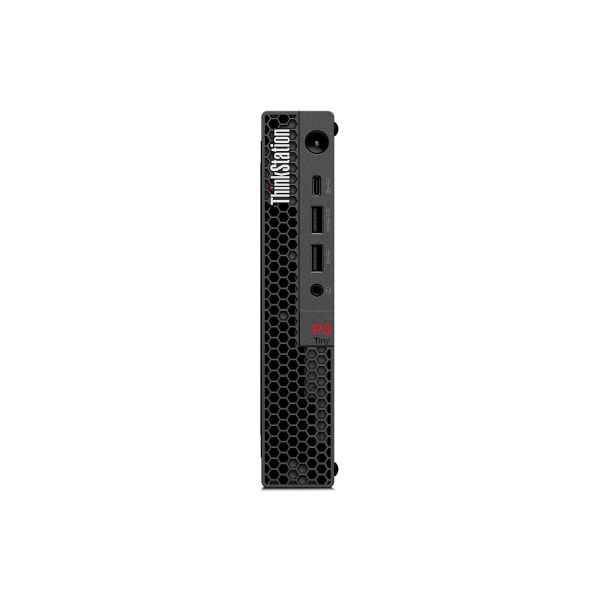

Lenovo ThinkStation P3 Gen 2 30K5
- Lenovo ThinkStation P3 Tiny Workstation: Compact, efficient Tiny with all the power of a regular workstation | Smaller than a traditional desktop, can go where other PCs can't | Insanely fast processors | Available with professional discrete graphics | Reliable, easy to deploy and versatile, ISV certified, supports up to 6 displays | Ideal for architecture, engineering, finance, healthcare and STEM education
| General Information | |
|---|---|
| Category | Workstation |
| Description | Lenovo ThinkStation P3 Gen 2 30K5 - AI Workstation - tiny Core Ultra 9 285 / up to 5.6 GHz - vPro Enterprise - RAM 32 GB - SSD 1 TB - TCG Opal Encryption, NVMe, Performance - RTX A400 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller |
| Manufacturer | Lenovo |
| MSRP | $3,389.00 |
| UNSPSC | 43211515 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 18.29 cm |
| Dimensions & Weight / Height | 3.7 cm |
| Dimensions & Weight / Weight | 1.4 kg |
| Dimensions & Weight / Width | 17.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface |
|
| Hard Drive / Interface Type |
|
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q870 |
| Mainboard / Processor Socket | FCLGA1851 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | 285 |
| Processor / Type | Core Ultra 9 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Platform Technology | Intel vPro Enterprise |
| System / Type |
|
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX A400 / Intel Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 36 MB |
| Installed Size | 36 MB |
| Dimensions & Weight | |
| Depth | 18.29 cm |
| Height | 3.7 cm |
| Weight | 1.4 kg |
| Width | 17.9 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| AI Level | AI Workstation |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Platform Technology | Intel vPro Enterprise |
| Product Form Factor | Tiny |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A400 / Intel Graphics |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Video Memory | 4 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | TCG Opal Encryption, NVM Express (NVMe), Performance |
| Interface Type | PCI Express 5.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo Traditional Keyboard |
| Localization & Layout | English |
| Miscellaneous | |
| Compliant Standards | FIPS 140-2, TCG Certified, MIL-STD 810H |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Ethernet Controller | Intel I219-LM |
| Features | Dual stream (2x2), Intel Active Management Technology (AMT) 16 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 36 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 90% |
| Power Provided | 330 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q870 |
| CPU | Intel Core Ultra 9 (Series 2) 285 |
| CPU Qty | 1 |
| CPU Socket | FCLGA1851 Socket |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.6 GHz |
| Number of Cores | 24-core |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 6400 MT/s |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Type | NVMe |
| Sustainability Information | |
| TCO Certified | TCO Certified, generation 10, for desktops |
