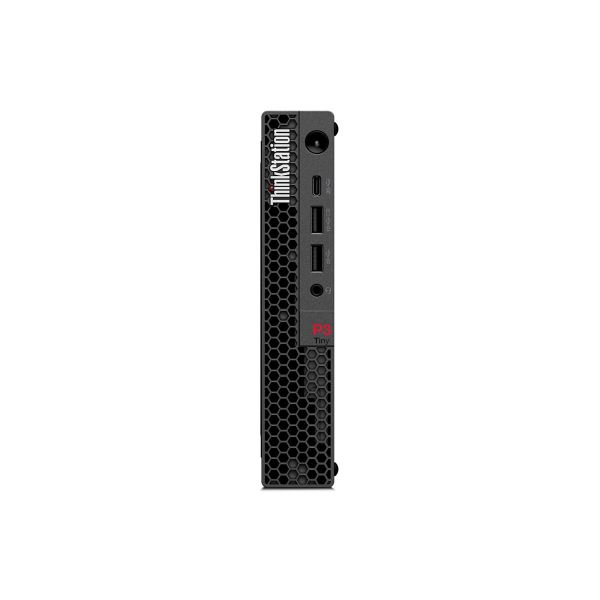

Lenovo ThinkStation P3 Gen 2 30K5

Be the first to review this product

Availability: In stock

SKU

30K50022US

UPC Code

198158138031

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkStation P3 Gen 2 is designed for professionals who need a reliable and compact workstation. Featuring an ultra-small form factor, this workstation packs a powerful Intel Core Ultra 7 processor with a clock speed of 2.4 GHz and a turbo speed of up to 5.3 GHz, delivering performance for demanding tasks. With 64 GB of DDR5 RAM and a 1 TB PCI Express SSD, it offers plenty of memory and storage to handle resource-intensive applications. The integrated NVIDIA RTX A1000 graphics ensure smooth visual performance, whether working on graphic design, video editing, or complex simulations. Connectivity is versatile with multiple ports including HDMI, USB-C 3.2, and DisplayPort, making it easy to connect to a variety of devices. The workstation also supports Wi-Fi 7 and Bluetooth 5.4, enabling fast and wireless networking. The robust security features, such as a discrete Trusted Platform Module (TPM 2.0) and an intrusion switch, provide peace of mind when handling sensitive data. Designed to meet the needs of professionals, the Lenovo ThinkStation P3 Gen 2 offers a blend of performance, connectivity, and security.

Lenovo ThinkStation P3 Tiny Workstation: Compact, efficient Tiny with all the power of a regular workstation | Smaller than a traditional desktop, can go where other PCs can't | Insanely fast processors | Available with professional discrete graphics | Reliable, easy to deploy and versatile, ISV certified, supports up to 6 displays | Ideal for architecture, engineering, finance, healthcare and STEM education

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P3 Gen 2 30K5 - AI Workstation - tiny 1 x Core Ultra 7 265 / up to 5.3 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption, NVMe, Performance - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$2,509.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Ultra small form factor
Dimensions & Weight / Depth	18.29 cm
Dimensions & Weight / Height	3.7 cm
Dimensions & Weight / Weight	1.4 kg
Dimensions & Weight / Width	17.9 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0 x4 PCI Express 5.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4 PCI Express 5.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel Q870
Mainboard / Processor Socket	FCLGA1851 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	2.4 GHz
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	20-core
Processor / Processor Number	265
Processor / Type	Core Ultra 7
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	CSO-DIMM 262-pin SO-DIMM 262-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Output / Graphics Processor	Intel Graphics
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	30 MB
Installed Size	30 MB
Dimensions & Weight
Depth	18.29 cm
Height	3.7 cm
Weight	1.4 kg
Width	17.9 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Interfaces	3 x USB 3.2 Gen 2 (1 front, 2 rear) 1 x USB 3.2 Gen 2 (1 in front) (Always On) 1 x USB-C 3.2 Gen 2x2 (1 in front) 1 x headphones/microphone (1 in front) 1 x USB 3.2 Gen 1 (1 rear) 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) 1 x HDMI 1 x DisplayPort 1.4 1 x LAN (Gigabit Ethernet)
Slots	1 (total) / 0 (free) x M.2 Card (for WLAN) 3 (total) / 2 (free) x M.2 Card (for SSD) 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile (x8 mode) 1 (total) / 1 (free) x PCIe 4.0 x4 - low-profile
General
AI Level	AI Workstation
Color	Black
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	Tiny
Type	Workstation
Graphics Controller
Graphics Processor	Intel Graphics shared video memory (UMA) - up to 8 TOPS
Max Monitors Supported	2
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 512 GB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 5.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, TCG Certified
Included Accessories	Vertical stand
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	33 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	No optical drive
Power
Device Type	Power adapter
Efficiency	89%
Power Provided	230 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel Q870
Clock Speed	2.4 GHz (P-core) / 1.8 GHz (E-core)
CPU	Intel Core Ultra 7 (Series 2) 265
CPU Qty	1
CPU Socket	FCLGA1851 Socket
Max CPU Qty	1
Max Turbo Speed	5.3 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores	20-core
Processor Main Features	Intel Smart Cache
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	6400 MT/s
Features	Dual channel memory architecture
Form Factor	CSO-DIMM 262-pin
Installed Size	32 GB (installed) / 128 GB (max)
Rated Memory Speed	6400 MT/s
Slots	2 (total) / 1 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	PCI Express (NVMe)
RAID Level	RAID 0, RAID 1, RAID 5
Type	1 x RAID
Sustainability Information
Carbon Footprint	434 kg carbon emissions
PAIA Version	1.4.7
TCO Certified	TCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)	83
