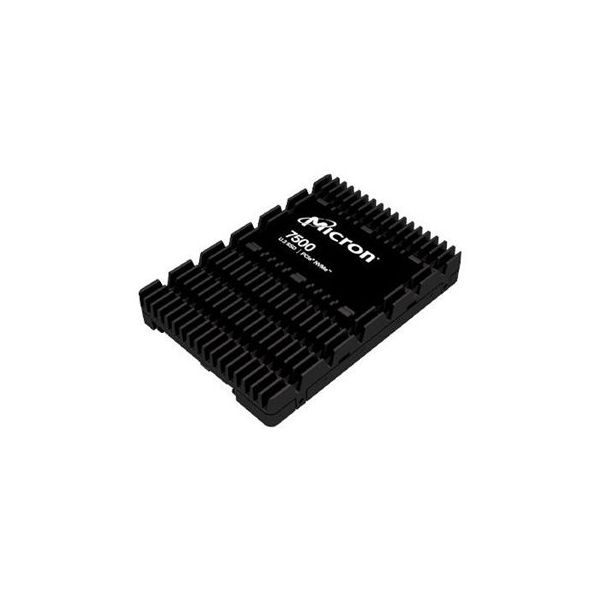

Micron 7500 PRO - SSD

Be the first to review this product

Availability: Out of stock

SKU

4XB7A95049

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo Micron 7500 PRO offers robust storage solutions for demanding environments. With a storage capacity of 960 GB, this solid state drive is designed to deliver high performance, featuring an internal data rate of 6800 MBps to ensure rapid read and write speeds suitable for intensive applications. This drive's 4KB random read performance reaches 800,000 IOPS, while random write performance stands at 85,000 IOPS, making it well-suited for data-intensive tasks.

Specifications

General Information
Category	Hard drives
Description	Micron 7500 PRO - SSD - Read Intensive - encrypted - 960 GB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED)
Manufacturer	Lenovo
MSRP	$3,899.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	10 cm
Dimensions & Weight / Height	1.5 cm
Dimensions & Weight / Weight	200 g
Dimensions & Weight / Width	7 mm
Hard Drive / Capacity	960 GB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.3 PCIe 4.0 x4 (NVMe)
Hard Drive / Interface	U.3 PCIe 4.0 x4 (NVMe)
Header / Brand	Micron
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	70 °C
Max Storage Temperature	85 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Shock Tolerance (non-operating)	1500 g @ 0.5 ms
Vibration Tolerance (non-operating)	9.1 gRMS @ 5-800 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x U.3 PCIe 4.0 x4 (NVMe)
General
Capacity	960 GB
Depth	10 cm
Device Type	Solid state drive - hot-swap
Encryption Algorithm	3072-bit RSA
Features	232-layer TLC NAND technology, Advanced ECC Engine, End-to-end data protection, Adaptive thermal monitoring, Secure Execution Environment, Asymmetric Roots of Trust, Strong Asymmetric Key Support, RSA Delegation Key Support, Secure Boot, Key-Based Firmware Update, Key-Based Privileged Access, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	1.5 cm
Interface	U.3 PCIe 4.0 x4 (NVMe)
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	200 g
Width	7 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	EN 55032, EN 55024: Class B, RoHS, FCC CFR 47 Part 15 Class B, UL/cUL, UL-60950-1 2nd Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, CNS 13438 Class B, CNS 15663, AS/NZS CISPR32 Class B, KN32 Class B, KN35 Class B, WEEE 2012/19/EC, IEC 60950, EN 60950, VCCI 2015.04 Class B, ICES-003 Class B, EN55024 Class B, UkrSEPRO, EN55032 Class B, UKCA, SI 2016/1091 Class B, SI 2012/3032 RoHS
Performance
4KB Random Read	800000 IOPS
4KB Random Write	85000 IOPS
Average Latency	15 µs
Drive Class	Read Intensive
Drive Writes Per Day (DWPD)	1
Internal Data Rate	6800 MBps (read) / 1400 MBps (write)
SSD Endurance	1752 TB
Power
Power Consumption	12.3 Watt (read) 7.3 Watt (write)
Reliability
MTBF	2,000,000 hours
Non-Recoverable Errors	1 per 10^17
