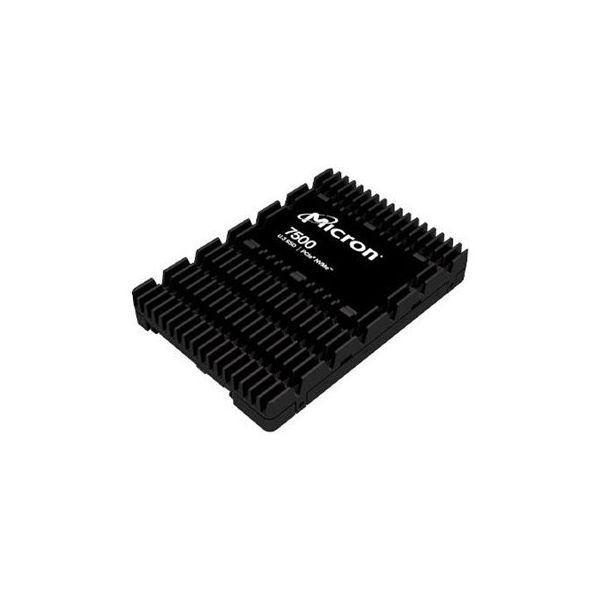

Micron 7500 MAX - SSD
Lenovo Micron 7500 MAX is designed for performance and reliability. With a capacity of 800 GB and an internal data rate of 6800 MBps, it ensures swift data processing and storage efficiency. The drive's advanced ECC Engine and end-to-end data protection features maintain data integrity, while adaptive thermal monitoring and advanced power loss protection architecture contribute to durability under various conditions. This 2.5-inch hot-swap SSD is built using 232-layer TLC NAND technology, providing a solid foundation for mixed-use applications. The U.3 PCIe 4.0 x4 interface enhances data transfer rates, making it a suitable choice for systems requiring fast and reliable storage solutions. In addition to robust performance, the drive offers security features such as Secure Boot and hardware encryption with TCG Opal Encryption 2.01, ensuring that data remains protected against unauthorized access.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 7500 MAX - SSD - Mixed Use - encrypted - 800 GB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED) |
| Manufacturer | Lenovo |
| MSRP | $3,899.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 800 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 9.1 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 800 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 3072-bit RSA |
| Features | 232-layer TLC NAND technology, Advanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, Adaptive thermal monitoring, Secure Execution Environment, Asymmetric Roots of Trust, Strong Asymmetric Key Support, RSA Delegation Key Support, Secure Boot, Key-Based Firmware Update, Key-Based Privileged Access, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 200 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55024 Class B, EN 55032, FCC CFR 47 Part 15 Class B, UL/cUL, UL-60950-1 2nd Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, CNS 13438 Class B, CNS 15663, AS/NZS CISPR32 Class B, RCM, KN32 Class B, KN35 Class B, WEEE 2012/19/EC, IEC60950/EN60950, VCCI Class B, ICES-003 Class B, UkrSEPRO, Morocco, EN55032 Class B, RoHS, UKCA, SI 2016/1091 Class B, SI 2012/3032 RoHS, IC, VCCI 2015.04 Class B |
| Performance | |
| 4KB Random Read | 800000 IOPS |
| 4KB Random Write | 145000 IOPS |
| Average Latency | 15 µs |
| Drive Class | Mixed Use |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 6800 MBps (read) / 1400 MBps (write) |
| SSD Endurance | 4380 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
