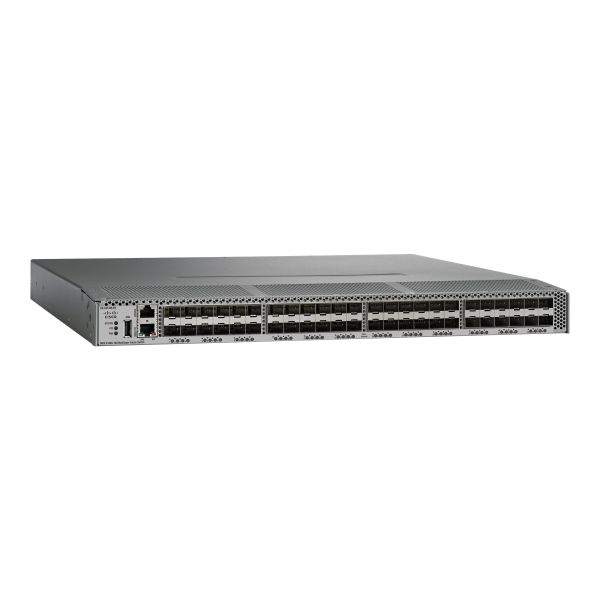

Cisco MDS 9148S - Switch
| General Information | |
|---|---|
| Category | Hubs or concentrators |
| Description | Cisco MDS 9148S - Switch - managed - 12 x 16Gb Fibre Channel - back to front airflow - rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $8,529.75 |
| UNSPSC | 43222610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 41.5 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 9 kg |
| Dimensions & Weight / Width | 43.59 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 41.5 cm |
| Height | 4.37 cm |
| Weight | 9 kg |
| Width | 43.59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Auto-sensing per device, ISL support, VRRP support, ACL support, QoS, RSPAN, role based access control, RSCN support, SFTP client |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6 |
| Ports | 12 x 16Gb Fibre Channel |
| Remote Management Protocol | RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI |
| Subtype | Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, FIPS 140-2, FCC CFR21 Part 1040, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, EN 55022 Class A |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 300 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco Data Center Network Manager (DCNM) for SAN Advanced Edition, Cisco MDS 9000 Family Enterprise Package |
