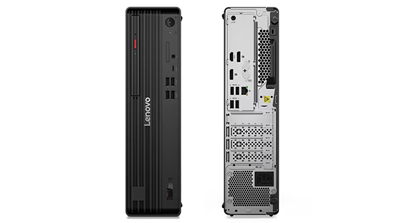

Lenovo ThinkCentre M70s Gen 6 12YK
- Small Chassis, Big Performance: ThinkCentre M70s Gen 6 (Intel) Small Form Factor PC | A small form factor (SFF) AI PC with commercial-grade reliability that delivers smooth performance & promotes high productivity. | Enterprise-grade performance, security & manageability with Intel vPro | ® | Industry-leading GPUs & powerful AI performance to handle demanding workloads | Versatile & adaptable SFF with multiple ports & expandable storage options for multitasking
- ENHANCED PRODUCTIVITY & CREATIVITY: AI Support for Efficient Workflow Lenovo AI Now* is an AI assistant enhancing productivity and creativity, delivering personalized experiences. It leverages AI features like knowledge management, document summarization, and device control, prioritizing data privacy, and security. *Available on select models
- COMPACT POWERHOUSE FOR CREATIVITY: Effortless Multitasking, Exceptional Graphics Power your creativity with graphics choices. Go with the optional NVIDIA ® GeForce RTX ® GPU for high-quality visual computing for video/graphic tasks, streamlined multitasking, and balanced performance. Monitor sold separately
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkCentre M70s Gen 6 12YK - AI PC - SFF Core Ultra 7 265 / up to 5.3 GHz - vPro Enterprise - RAM 16 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller |
| Manufacturer | Lenovo |
| MSRP | $1,829.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.97 cm |
| Dimensions & Weight / Height | 33.95 cm |
| Dimensions & Weight / Weight | 5.1 kg |
| Dimensions & Weight / Width | 9.25 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q870 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD±RW |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | 265 |
| Processor / Type | Core Ultra 7 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Platform Technology | Intel vPro Enterprise |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 cache - 30 MB |
| Dimensions & Weight | |
| Depth | 29.97 cm |
| Height | 33.95 cm |
| Weight | 5.1 kg |
| Width | 9.25 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 39.5 cm |
| JTFpping Height | 53 cm |
| JTFpping Weight | 6.7 kg |
| JTFpping Width | 19.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI PC |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Platform Technology | Intel vPro Enterprise |
| Product Form Factor | SFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) - up to 8 TOPS |
| Max Monitors Supported | 3 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo Traditional Keyboard |
| Localization & Layout | English |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified |
| Included Accessories | Vertical stand |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 33 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Optical Storage | |
| Type | DVD±RW DVD-Writer - SATA |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Provided | 260 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q870 |
| Clock Speed | 2.4 GHz (P-core) / 1.8 GHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 2) 265 |
| CPU Qty | 1 |
| L2 cache | 36 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.3 GHz (P-core) / 4.6 GHz (E-core) |
| Number of Cores | 20-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 5600 MT/s |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Storage Controller (2nd) | |
| Controller Interface Type | PCI Express 4.0 x4 |
| Type | 1 x NVMe |
| Sustainability Information | |
| Carbon Footprint | 533 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 9.0 |
| EPEAT Compliant | EPEAT Gold |
| PAIA Version | 1.4.7 |
| TCO Certified | TCO Certified, generation 10, for desktops |
| Total CF/unit Standard Deviation (kg CO2e) | 90 |
