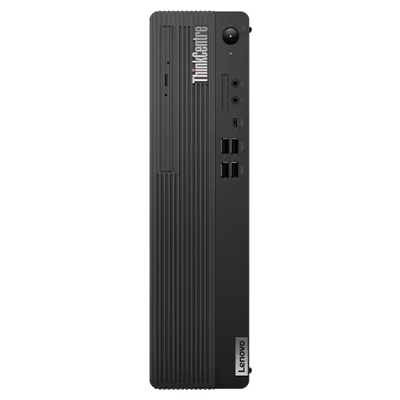

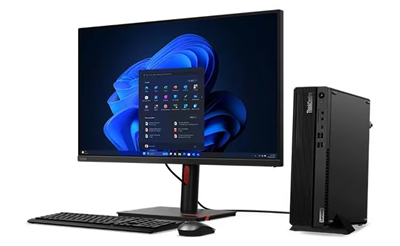

Lenovo ThinkCentre M70s Gen 5 12U3
The Lenovo ThinkCentre M70s Gen 5 is designed to deliver both performance and security, making it an ideal choice for professionals and businesses. At its core, a 14th Generation Intel Core i5 processor provides the power needed for productivity and multitasking. Security is a top priority, with features like a discrete TPM 2.0 chip and a range of compliance standards including FIPS 140-2 and TCG certified, ensuring your data remains safe. Connectivity is versatile, with options including USB-C 3.2 Gen 1, HDMI, and DisplayPort 1.4a, facilitating easy connection to a variety of devices and networks. The system's DDR5 SDRAM at 4800 MHz enhances its performance, making it capable of handling demanding applications with ease. Additionally, its commitment to sustainability is evident through its ENERGY STAR certification and EPEAT Gold rating, making it not only a powerful but also an environmentally responsible choice for your computing needs.
- Lenovo ThinkCentre M70s Gen 5 Small Form Factor: Small form, big impact | Fast, powerful small-form factor desktop PC | AI-accelerated features to enhance performance | Powerful processors | ThinkJTFeld security solutions to protect your data and your business
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkCentre M70s Gen 5 12U3 - SFF Core i5 i5-14400 / up to 4.7 GHz - RAM 16 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - UHD Graphics 730 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black - Lenovo TopSeller |
| Manufacturer | Lenovo |
| MSRP | $1,509.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.77 cm |
| Dimensions & Weight / Height | 33.95 cm |
| Dimensions & Weight / Weight | 5.3 kg |
| Dimensions & Weight / Width | 9.25 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q670 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD±RW |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.5 GHz |
| Processor / Generation | 14 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 10-core |
| Processor / Processor Number | I5-14400 |
| Processor / Type | Core i5 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 730 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 20 MB |
| Installed Size | 20 MB |
| Dimensions & Weight | |
| Depth | 29.77 cm |
| Height | 33.95 cm |
| Weight | 5.3 kg |
| Width | 9.25 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 39.5 cm |
| JTFpping Height | 53 cm |
| JTFpping Weight | 7.6 kg |
| JTFpping Width | 19.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 shared video memory (UMA) |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo Traditional Keyboard |
| Localization & Layout | English |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Optical Storage | |
| Type | DVD±RW DVD-Writer - SATA |
| Power | |
| Device Type | Power supply |
| Efficiency | 90% |
| Power Provided | 260 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q670 |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| CPU | Intel Core i5 (14th Gen) i5-14400 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 4800 MT/s |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| Carbon Footprint | 511 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| EPEAT Compliant | EPEAT Gold |
| PAIA Version | 1.4.0 |
| TCO Certified | TCO Certified Desktops 9 |
| Total CF/unit Standard Deviation (kg CO2e) | 72 |
