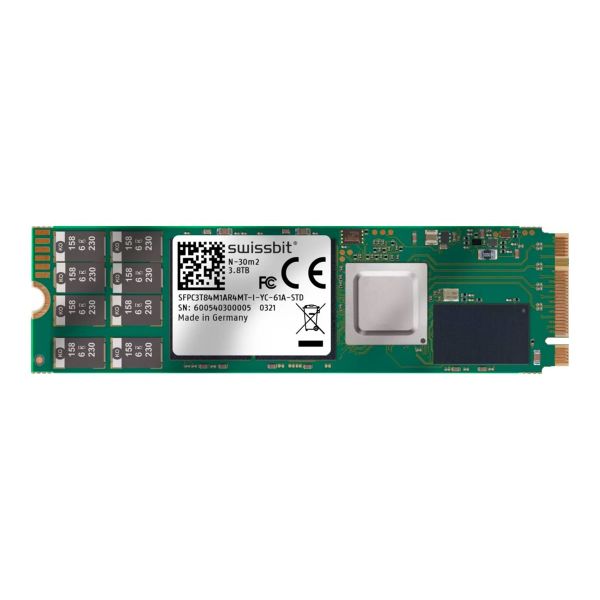

Swissbit N-30m2 - SSD
The Lenovo Swissbit N-30m2 is an internal solid state drive tailored for storage needs. With a storage capacity of 3.84 TB and internal data rates of up to 2460 MBps, this drive ensures efficient data access. Designed for reliability, it features technologies such as TRIM support and Thermal throttling, managing thermal conditions effectively. Built to withstand environments from -40°C to 85°C, the N-30m2 is suitable for varied applications. The drive maintains resilience with Power Loss Protection and end-to-end data protection, ensuring data integrity. Additionally, its compliance with standards such as S.M.A.R.T. provides assurance for performance monitoring and maintenance.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Swissbit N-30m2 - SSD - Read Intensive - encrypted - 3.84 TB - internal - M.2 2280 - PCIe 3.1 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED) |
| Manufacturer | Lenovo |
| MSRP | $15,399.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 3.8 mm |
| Dimensions & Weight / Weight | 9 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Header / Brand | Swissbit |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 50 gRMS @ 80-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.1 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 3.84 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | End-to-end data protection, Thermal throttling, thermal sensor, Power Loss Protection (PLP), TRIM support, Native Command Queuing (NCQ), S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 3.8 mm |
| Interface | PCIe 3.1 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 9 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | 2014/30/EU, FCC CFR47 Part 15, RoHS 2011/65/EU, RoHS 2015/863/EU, Directive 2017/2102/EU, Directive 1907/2006/EU, WEEE 2012/19/EU |
| Performance | |
| 4KB Random Read | 378000 IOPS |
| 4KB Random Write | 520000 IOPS |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.4 |
| Internal Data Rate | 2460 MBps (read) / 2240 MBps (write) |
| SSD Endurance | 2946 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 3,000,000 hours |
| Recoverable Errors | 1 per 10^16 |
