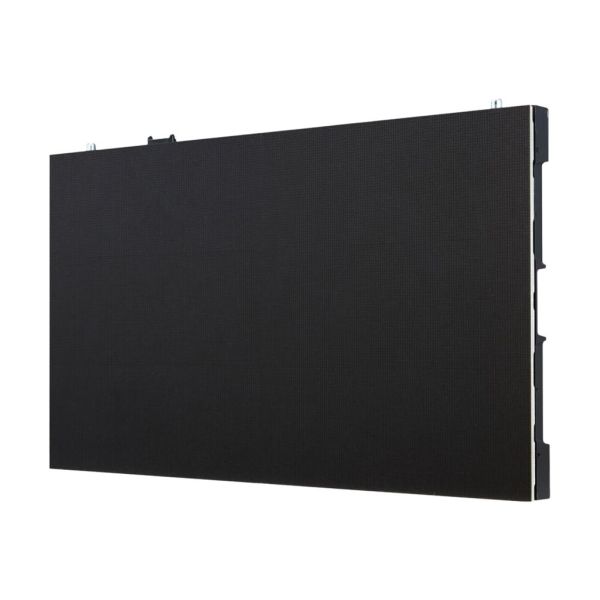

LG Bloc LSAA012-QX6 - LSAA Series LED display unit
With unrivaled picture quality and optimum cable-less design, expand the possibilities of business space itself. The LSAA series is the innovative LED signage applying the wireless transmission technology with non-contact connectors.
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG Bloc LSAA012-QX6 - LSAA Series LED display unit - Direct View LED - digital signage - webOS 480 x 270 per unit - SMD - HDR - TAA Compliant |
| Manufacturer | LG Electronics |
| MSRP | $5,242.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.49 cm |
| Dimensions & Weight / Height | 33.75 cm |
| Dimensions & Weight / Weight | 6.9 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1200 cd/m² |
| Television / Image Contrast Ratio | 9000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Display | |
| Additional Features | 20-bit processing |
| Brightness | 1200 cd/m² |
| Color Temperature | 2800 - 10000K |
| Commercial Features | Crestron Connected Certified, Cableless installation |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 9000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 140° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 4.49 cm |
| Dimensions | Display unit |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Height | 33.75 cm |
| Operating System | webOS 4.0 |
| Platform | webOS |
| Product Type | LED display unit - Direct View LED |
| Series | LSAA Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Processor | ?7 Intelligent |
| Weight | 6.9 kg |
| Width | 60 cm |
| Miscellaneous | |
| Compliant Standards | RoHS, IEC 60950-1, EMC Class B, IP20, FCC Part 15 Class B, HDCP 2.2 |
| Included Accessories | LED controller |
| TAA Compliant | Yes |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 106.7 W |
| Video Wall Display Unit Power Consumption (Typical) | 64.02 W |
| Video Wall Display Unit | |
| Area | 0.203 m² |
| Aspect Ratio | 16:9 |
| Cabinet Frame Material | Die-casting aluminum |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 2x3 |
| Pixel Configuration | 4 red, 4 green, 4 blue |
| Pixel Density | 640000 pixels/m² |
| Pixel Pitch | 1.25 mm |
| Resolution | 480 x 270 |
