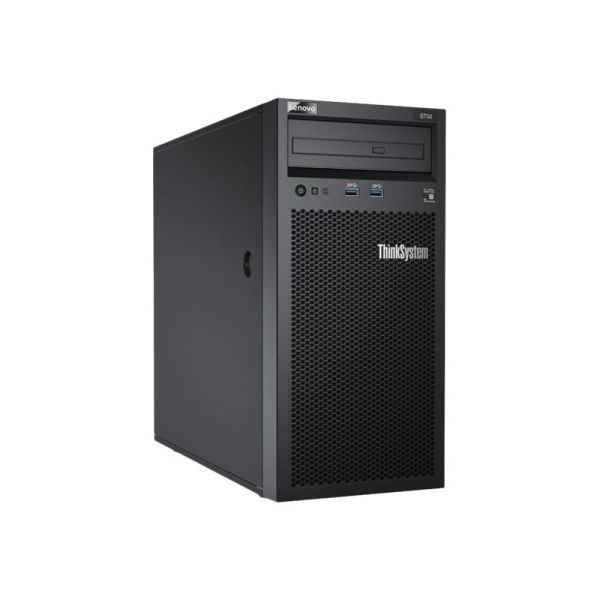

Lenovo ThinkSystem ST50 7Y48

Be the first to review this product

Availability: Out of stock

SKU

7Y48A04NNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

ThinkSystem ST50 is a compact, affordable, entry tower optimized for SMB, remote/branch offices, and small/home offices.

Premier Foundation: Upgrade your base warranty and extend support of your systems. Premier Support 9x5 Next Business Day Response Onsite Tech. Dispatch for parts and labor Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Essential: Best choice for systems where maximum uptime is essential to the business. Premier Support 24x7 4-Hour Response Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Advanced: Robust coverage for systems supporting workloads that are mission critical. Premier Support 24x7 2 Hour Response** Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem ST50 7Y48 - Server - tower 4U - 1-way - 1 x Xeon E-2276G / up to 4.9 GHz - RAM 16 GB - no HDD - UHD Graphics P630 - Gigabit Ethernet - no OS - monitor: none
Manufacturer	Lenovo
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	40.7 cm
Dimensions & Weight / Height	37.5 cm
Dimensions & Weight / Weight	7.5 kg
Dimensions & Weight / Width	17.5 cm
Display / Type	None.
Header / Brand	Lenovo
Mainboard / Chipset Type	Intel C246
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	3.8 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	6-core
Processor / Processor Number	E-2276G
Processor / Type	Xeon
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2666 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Intel UHD Graphics P630
Cache Memory
Cache Per Processor	12 MB
Installed Size	12 MB
Dimensions & Weight
Depth	40.7 cm
Height	37.5 cm
Weight	7.5 kg
Width	17.5 cm
Environmental Parameters
Humidity Range Operating	8 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" x 1/6H (Slim Line) 4 (total) / 4 (free) x internal 3.5"
Interfaces	6 x USB 3.1 Gen 1 (2 front, 4 rear) 2 x USB 2.0 2 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x serial 1 x audio line-out
Slots	1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)
General
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Front Accessible Bays Qty	1
Internal Bays Qty	4
Product Form Factor	Tower - 4U
Server Scalability	1-way
Type	Server
Graphics Controller
Graphics Processor	Intel UHD Graphics P630
Video Interfaces	DisplayPort
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, CECP, GB 4943.1, BIS, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TR CU 020/2011, TR CU 004/2011, UL 62368-1, ASHRAE Class A2, CELP, VCCI 32
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Networking
Compliant Standards	DASH 1.1
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 12
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Power Provided	250 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C246
Clock Speed	3.8 GHz
CPU	Intel Xeon E-2276G
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	4.9 GHz
Number of Cores	6-core
Processor Main Features	Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	2666 MT/s
Features	Unbuffered, mixing of different types of memory modules is not supported
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 64 GB (max)
Slots	4 (total) / 3 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Channel Qty	4
Controller Interface Type	SATA 6Gb/s
RAID Level	JBOD
Type	1 x SATA
