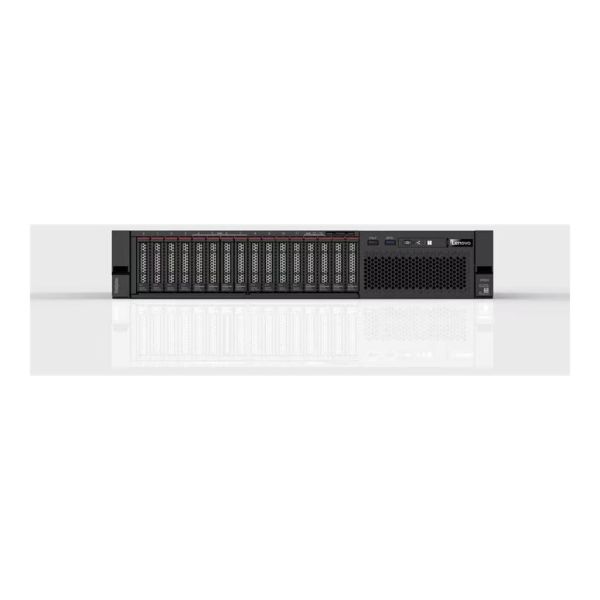

Lenovo ThinkSystem SR850 7X19

Be the first to review this product

Availability: Out of stock

SKU

7X19A05MNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkSystem SR850 is a 4-socket server that features a streamlined 2U rack design that is optimized for price and performance, with best-in-class flexibility and expandability. Models of the SR850 are powered by up to four Intel Xeon Processor Scalable Family processors, each with up to 28 cores, for an efficient 4-socket solution. The ThinkSystem SR850's agile design provides rapid upgrades for processors and memory, and its large, flexible storage capacity helps to keep pace with data growth.

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SR850 7X19 - Server - rack-mountable 2U - 4-way - 4 x Xeon Gold 5215 / up to 3.4 GHz - RAM 128 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$23,999.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SATA/SAS/PCI Express
Dimensions & Weight / Depth	76.37 cm
Dimensions & Weight / Height	8.65 cm
Dimensions & Weight / Weight	18 kg
Dimensions & Weight / Width	48.2 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	North America
Mainboard / Chipset Type	Intel C624
Miscellaneous / Product Color	Black
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	2.5 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	10-core
Processor / Processor Number	5215
Processor / Type	Xeon Gold
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2666 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Matrox G200
Cache Memory
Cache Per Processor	13.75 MB
Installed Size	55 MB
Dimensions & Weight
Depth	76.37 cm
Height	8.65 cm
Weight	18 kg
Width	48.2 cm
Expansion / Connectivity
Bays	4 (total) / 4 (free) x hot-swap 2.5" 4 (total) / 4 (free) x hot-swap AnyBay - 2.5"
Interfaces	2 x USB 3.0 (2 rear) 2 x USB 2.0 (2 in front) 2 x VGA (1 front, 1 rear) 1 x management - RJ-45 1 x serial
Slots	1 (total) / 1 (free) x LAN-on-Motherboard (LOM) 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile (2 processors must be installed) 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (2 processors must be installed) 3 (total) / 3 (free) x PCIe 3.0 x8 - low-profile 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile 3 (total) / 3 (free) x PCIe 3.0 x8 - half-length, full-height (2 processors must be installed)
General
Built-in Devices	Status LCD
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Hot-Swap Bays Qty	8
Localization	Region: North America
Product Form Factor	Rack-mountable - 2U
Server Scalability	4-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200
Video Interfaces	VGA
Video Memory	16 MB
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI CNS 13438 Class A, EN55024, CB, AS/NZS 60950-1, CCC, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, EAC, GB 4943.1, BIS, IEC60950-1, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, KN32 Class A, CNS 14336-1, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3
Included Accessories	Slide tool-less rail kit
Monitor
Monitor Type	None.
Networking
Features	Wake on LAN (WoL)
Remote Management Controller	XClarity Controller (XCC) Enterprise
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply - hot-plug
Installed Qty	2
Max Supported Qty	2
Power Provided	1100 Watt
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	AC 200/240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C624
Clock Speed	2.5 GHz
CPU	Intel Xeon Gold 5215
CPU Qty	4
Max CPU Qty	4
Max Turbo Speed	3.4 GHz
Number of Cores	10-core
RAM
Configuration Features	4 x 32 GB
Effective Memory Speed	2666 MT/s
Features	Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, supports Intel Optane DC Persistent Memory (DCPMM)
Form Factor	DIMM 288-pin
Installed Size	128 GB (installed) / 1.5 TB (max)
RAM Supported	1.5 TB registered - ECC 3 TB Load-Reduced - ECC 6 TB 3DS registered - ECC
Slots	48 (total) / 44 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Buffer Size	2 GB
Channel Qty	8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Storage Controller Name	ThinkSystem RAID 930-8i
Type	1 x RAID - PCIe 3.0 x8
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	2.1
