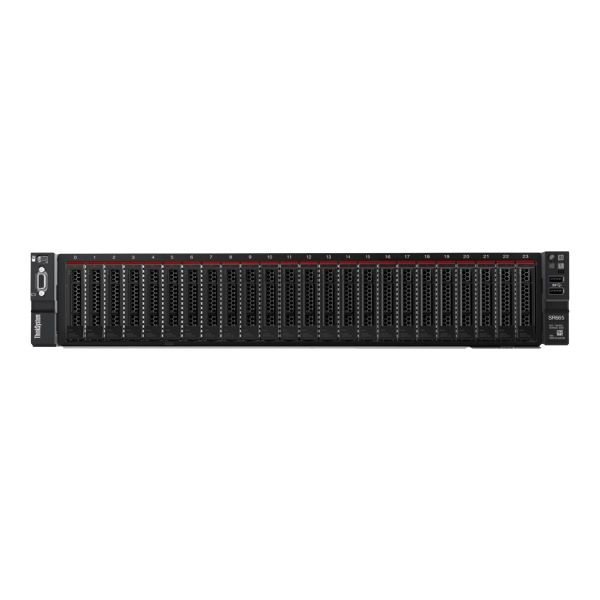

Lenovo ThinkSystem SR665 7D2V

Be the first to review this product

Availability: Out of stock

SKU

7D2V1005NA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkSystem SR665 delivers performance and TCO optimization for software-defined workloads, database, big data & analytics, virtualization, virtualized desktop infrastructure (VDI), and HPC/AI workloads. Lenovo's lauded system reliability, management capabilities, and security infrastructure layer on to the exceptional value that the ThinkSystem SR665 brings to the data center.

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SR665 7D2V - Server - rack-mountable 2U - 2-way - 1 x EPYC 7763 / up to 3.5 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - SSD 1.92 TB - Matrox G200 - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$12,509.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SAS
Dimensions & Weight / Depth	76.4 cm
Dimensions & Weight / Height	8.7 cm
Dimensions & Weight / Weight	38.8 kg
Dimensions & Weight / Width	44.5 cm
Display / Type	None.
Hard Drive / Capacity	1.92 TB
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface Type	Serial ATA-600
Header / Brand	Lenovo
Header / Country Kits	North America
Miscellaneous / Product Color	Black
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	2.45 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	64-core
Processor / Processor Number	7763
Processor / Type	EPYC
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1.92 TB
System / Type	Server
Video Output / Graphics Processor	Matrox G200
Cache Memory
Cache Per Processor	256 MB
Installed Size	L3 cache - 256 MB
Dimensions & Weight
Depth	76.4 cm
Height	8.7 cm
Weight	38.8 kg
Width	44.5 cm
Expansion / Connectivity
Bays	16 (total) / 16 (free) x hot-swap 2.5"
Interfaces	5 x USB 3.1 Gen 1 (1 front, 3 rear, 1 internal) 1 x USB 2.0 (1 in front) 1 x VGA 1 x management - RJ-45
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (open ended) 1 (total) / 1 (free) x PCIe 4.0 x16 2 (total) / 2 (free) x PCIe 4.0 x8
General
Built-in Devices	LED panel, 5 x performance fans
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Hot-Swap Bays Qty	16
Localization	Region: North America
Product Form Factor	Rack-mountable - 2U
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200
Video Interfaces	VGA
Video Memory	16 MB
Hard Drive
Capacity	1 x 1.92 TB
Interface Type	SATA 6Gb/s
Type	SSD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, CCC, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, BSMI CNS 14336-1, BIS, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, TP TC 004/2011, TP TC 020/2011, Redfish API, IEC 60950-1 (CB Certificate and CB Test Report), CNS 15663 section 5, TP EAC 037/2016, EN 50581-1
Included Accessories	Slide tool-less rail kit
Theft/Intrusion Protection	Chassis intrusion switch
Monitor
Monitor Type	None.
Networking
Remote Management Controller	XClarity Controller (XCC) Enterprise
Remote Management Protocol	SNMP 3, IPMI 2.0
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Titanium
Device Type	Power supply - hot-plug
Installed Qty	2
Max Supported Qty	2
Power Provided	1100 watt
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed	2.45 GHz
CPU	AMD EPYC 7763
CPU Qty	1
Max CPU Qty	2
Max Turbo Speed	3.5 GHz
Number of Cores	64-core
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	3200 MT/s
Features	Registered, 8-channel memory architecture, TruDDR4, Patrol Scrubbing, Demand Scrubbing, slots 17 - 32 are available in two-processor configuration only, Performance+ Memory Mode
Form Factor	DIMM 288-pin
Installed Size	32 GB
RAM Supported	8 TB 3DS registered
Slots	32 (total) / 31 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Buffer Size	4 GB
Channel Qty	8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Storage Controller Name	ThinkSystem RAID 930-16i
Type	1 x RAID - PCIe 3.0 x8
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	3.0
