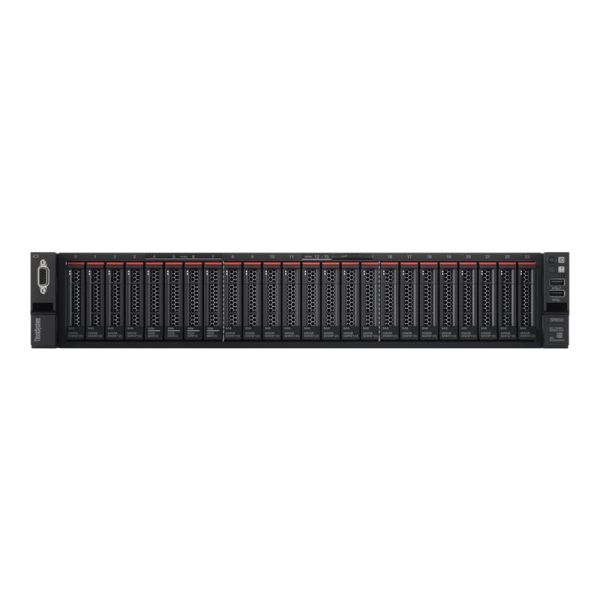

Lenovo ThinkSystem SR650 7X06

Be the first to review this product

Availability: Out of stock

SKU

7X06A0M1NA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Top-performing server for data centers needing scalability Lenovo ThinkSystem SR650 is a 2-socket rack server designed for speed and expansion, with flexible storage and I/O, and industry#1 reliability for business-critical workloads.

Premier Foundation: Upgrade your base warranty and extend support of your systems. Premier Support 9x5 Next Business Day Response Onsite Tech. Dispatch for parts and labor Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Essential: Best choice for systems where maximum uptime is essential to the business. Premier Support 24x7 4-Hour Response Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Advanced: Robust coverage for systems supporting workloads that are mission critical. Premier Support 24x7 2 Hour Response** Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SR650 7X06 - Server - rack-mountable 2U - 2-way - 1 x Xeon Silver 4210 / up to 3.2 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - SSD 2 x 240 GB, SSD 3 x 3.84 TB - G200e - 10 Gigabit Ethernet - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$9,669.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SAS
Dimensions & Weight / Depth	72 cm
Dimensions & Weight / Height	8.7 cm
Dimensions & Weight / Weight	19 kg
Dimensions & Weight / Width	44.5 cm
Display / Type	None.
Hard Drive / Capacity	240 GB
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface Type	Serial ATA-600
Header / Brand	Lenovo
Header / Country Kits	North America
Mainboard / Chipset Type	Intel C624
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	10 Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	2.2 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	10-core
Processor / Processor Number	4210
Processor / Type	Xeon Silver
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	12 TB
System / Type	Server
Video Output / Graphics Processor	Matrox G200e
Cache Memory
Cache Per Processor	13.75 MB
Installed Size	13.75 MB
Dimensions & Weight
Depth	72 cm
Height	8.7 cm
Weight	19 kg
Width	44.5 cm
Expansion / Connectivity
Interfaces	1 x management - RJ-45 3 x USB 3.0 (1 front, 2 rear) 1 x VGA 1 x USB 2.0 (1 in front) 4 x LAN (10Gigabit Ethernet)
Slots	1 (total) / 1 (free) x LAN-on-Motherboard (LOM) 2 PCIe 3.0 x8 - low-profile 1 (total) / 1 (free) x PCIe 3.0 x8 (for internal storage controller) 1 (total) / 1 (free) x PCIe 3.0 x16
General
Embedded Security	Trusted Platform Module (TPM 1.2 and TPM 2.0)
Hot-Swap Bays Qty	8
Localization	Region: North America
Product Form Factor	Rack-mountable - 2U
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200e
Video Interfaces	VGA
Video Memory	16 MB
Hard Drive
Capacity	2 x 240 GB
Interface Type	SATA 6Gb/s
Type	SSD - 2.5"
Hard Drive (2nd)
Capacity	3 x 3.84 TB
Features	NVM Express (NVMe)
Interface Class	PCI Express
Interface Type	PCI Express 3.0 x4
Type	SSD - 2.5"
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, KN22 Class A, NMB-3 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, EN 55022 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Included Accessories	Tool-less rail kit
Monitor
Monitor Type	None.
Networking
Data Link Protocol	10 Gigabit Ethernet
Ethernet Ports	4 x 10 Gigabit Ethernet, 4 x SFP+
Remote Management Controller	XClarity Controller (XCC) Enterprise
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply - hot-plug
Installed Qty	0
Max Supported Qty	2
Power Provided	750 Watt
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C624
Clock Speed	2.2 GHz
CPU	Intel Xeon Silver 4210
CPU Qty	1
Max CPU Qty	2
Max Turbo Speed	3.2 GHz
Number of Cores	10-core
Processor Main Features	Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features	2 x 32 GB
Effective Memory Speed	2400 MT/s
Features	Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, Patrol Scrubbing, Demand Scrubbing
Form Factor	DIMM 288-pin
Installed Size	64 GB
RAM Supported	768 GB registered 1.5 TB Load-Reduced 3 TB 3DS registered
Slots	24 (total) / 22 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Channel Qty	16
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
RAID Level	RAID 0, RAID 1, RAID 10
Storage Controller Name	ThinkSystem RAID 530-16i
Type	1 x RAID - PCIe 3.0 x8
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	2.1
