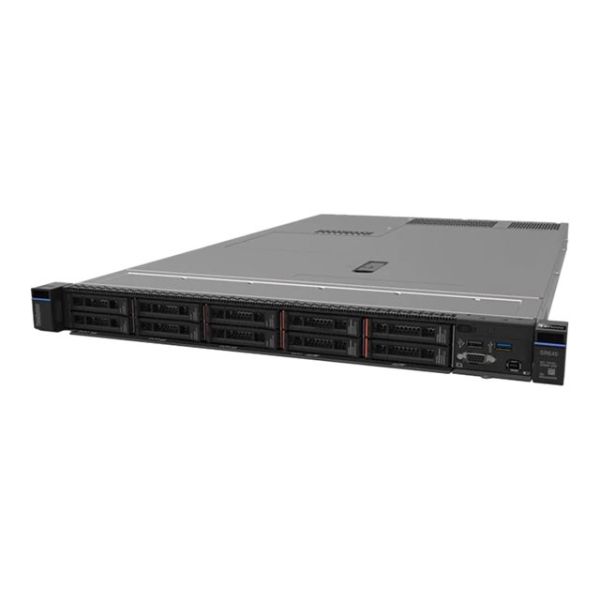

Lenovo ThinkSystem SR645 7D2X

Be the first to review this product

Availability: Out of stock

SKU

7D2XA01GNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

A 2S/1U rack server powered by two AMD EPYC 7003 series CPUs, the ThinkSystem SR645 features standout 1U configuration flexibility to handle critical hybrid data center workloads such as virtualization and database.

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SR645 7D2X - Server - rack-mountable 1U - 2-way - 1 x EPYC 7402 / up to 3.35 GHz - RAM 32 GB - no HDD - Matrox G200 - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$5,849.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Dimensions & Weight / Depth	77.3 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	20.2 kg
Dimensions & Weight / Width	44 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	Canada United States
Miscellaneous / Product Color	Black
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	2.8 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	24-core
Processor / Processor Number	7402
Processor / Type	EPYC
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	Matrox G200
Cache Memory
Cache Per Processor	128 MB
Installed Size	L3 cache - 128 MB
Dimensions & Weight
Depth	77.3 cm
Height	4.3 cm
Weight	20.2 kg
Width	44 cm
Expansion / Connectivity
Interfaces	5 x USB 3.1 Gen 1 (1 front, 3 rear, 1 internal) 1 x USB 2.0 (1 in front) 2 x VGA (1 front, 1 rear) 1 x management - RJ-45
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (open ended)
General
Built-in Devices	LED panel
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Region: Canada, United States
Product Form Factor	Rack-mountable - 1U
Server Scalability	2-way
Type	Server
Graphics Controller
Graphics Processor	Matrox G200
Video Interfaces	VGA
Video Memory	16 MB
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, CCC, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, TP TC 004/2011, TP TC 020/2011, Redfish API, IEC 60950-1 (CB Certificate and CB Test Report), CNS 15663 section 5, TP EAC 037/2016, EN 50581-1
Included Accessories	Slide tool-less rail kit, 6 hot plug performance fans
Theft/Intrusion Protection	Chassis intrusion switch
Monitor
Monitor Type	None.
Networking
Remote Management Controller	XClarity Controller (XCC) Enterprise
Remote Management Protocol	SNMP 3, IPMI 2.0
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Provided	750 Watt
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V (50/60 Hz)
Processor / Chipset
Clock Speed	2.8 GHz
CPU	AMD EPYC 7402
CPU Qty	1
Max CPU Qty	2
Max Turbo Speed	3.35 GHz
Number of Cores	24-core
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	3200 MT/s
Features	Registered, 8-channel memory architecture, TruDDR4, Patrol Scrubbing, Demand Scrubbing, slots 17 - 32 are available in two-processor configuration only
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 2 TB (max)
RAM Supported	4 TB 3DS registered
Slots	32 (total) / 31 (empty)
Technology	DDR4 SDRAM - ECC
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	3.0
