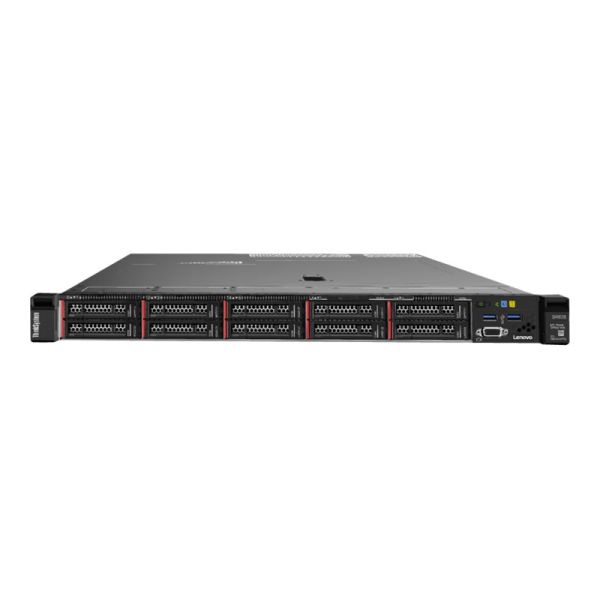

Lenovo ThinkSystem SR635 7Y99

Be the first to review this product

Availability: Out of stock

SKU

7Y99A02WNA

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

1P/1U tuned for virtualization& Hybrid IT ThinkSystem SR635 is a 1U/1P rack server tuned for virtualization, database and scale-out software-defined storage.

Premier Foundation: Upgrade your base warranty and extend support of your systems. Premier Support 9x5 Next Business Day Response Onsite Tech. Dispatch for parts and labor Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Essential: Best choice for systems where maximum uptime is essential to the business. Premier Support 24x7 4-Hour Response Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
Premier Advanced: Robust coverage for systems supporting workloads that are mission critical. Premier Support 24x7 2 Hour Response** Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options

Specifications

General Information
Category	Servers
Description	Lenovo ThinkSystem SR635 7Y99 - Server - rack-mountable 1U - 1-way - 1 x EPYC 7302P / up to 3.3 GHz - RAM 32 GB - no HDD - AST2500 - no OS - monitor: none
Manufacturer	Lenovo
MSRP	$4,989.00
UNSPSC	43211501
Main Specifications
Chassis / Form Factor	Rack-mountable
Dimensions & Weight / Depth	75.5 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	19.2 kg
Dimensions & Weight / Width	44 cm
Display / Type	None.
Header / Brand	Lenovo
Header / Country Kits	North America
Miscellaneous / Product Color	Black
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	No operating system
Packaged Quantity	1
Processor / Clock Speed	3 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	16-core
Processor / Processor Number	7302P
Processor / Type	EPYC
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	0 GB
System / Type	Server
Video Output / Graphics Processor	ASPEED AST2500
Cache Memory
Cache Per Processor	128 MB
Installed Size	L3 cache - 128 MB
Dimensions & Weight
Depth	75.5 cm
Height	4.3 cm
Weight	19.2 kg
Width	44 cm
Expansion / Connectivity
Interfaces	1 x serial - DB-9 (1 rear) 3 x USB 3.1 Gen 1 (2 front, 1 rear) 2 x VGA (1 front, 1 rear) 1 x management - RJ-45
Slots	3 (total) / 3 (free) x PCIe 4.0 x16 - low-profile 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
General
Built-in Devices	6 x fans
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Localization	Region: North America
Product Form Factor	Rack-mountable - 1U
Server Scalability	1-way
Type	Server
Graphics Controller
Graphics Processor	ASPEED AST2500
Video Interfaces	VGA
Video Memory	512 MB
Hard Drive
Type	No HDD
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, CCC, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, EAC, GB 4943.1, BSMI CNS 14336-1, BIS, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TP TC 004/2011, TP TC 020/2011, IEC/UL 60950-1, IEC 60950-1 (CB Certificate and CB Test Report)
Included Accessories	Slide tool-less rail kit
Monitor
Monitor Type	None.
Networking
Remote Management Controller	XClarity Controller (XCC)
Operating System / Software
OS Provided	No operating system
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Provided	750 watt
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed	3 GHz
CPU	AMD EPYC 7302P
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	3.3 GHz
Number of Cores	16-core
RAM
Configuration Features	1 x 32 GB
Effective Memory Speed	3200 MT/s
Features	Registered, mixing of different types of memory modules is not supported, 8-channel memory architecture, TruDDR4, Patrol Scrubbing, Demand Scrubbing
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 2 TB (max)
Slots	16 (total) / 15 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
Type	1 x SATA
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	3.0
