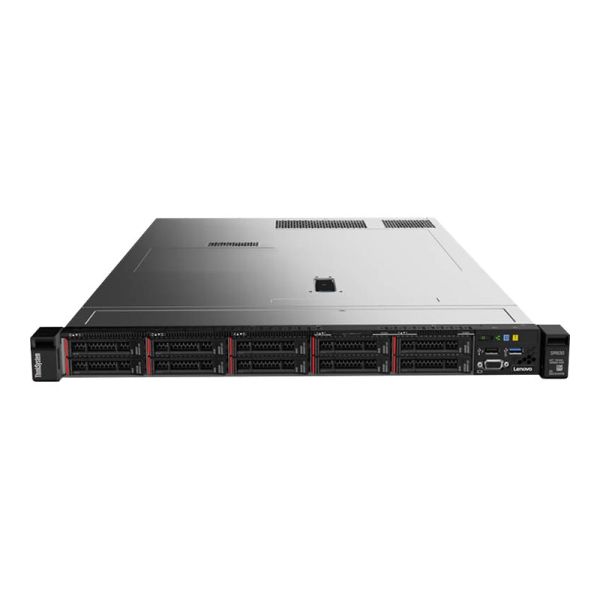

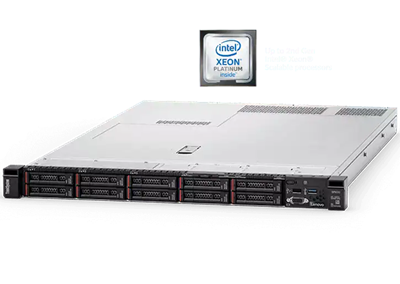

Lenovo ThinkSystem SR630 7X02
Built for business, with business-critical versatility The versatile, highly reliable 1U ThinkSystem SR630 2P rack server is designed to handle most data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
- Premier Foundation: Upgrade your base warranty and extend support of your systems. Premier Support 9x5 Next Business Day Response Onsite Tech. Dispatch for parts and labor Extend coverage up to 5 years 1 and 2 year Post Warranty Options
- Premier Essential: Best choice for systems where maximum uptime is essential to the business. Premier Support 24x7 4-Hour Response Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
- Premier Advanced: Robust coverage for systems supporting workloads that are mission critical. Premier Support 24x7 2 Hour Response** Onsite Tech. Dispatch for Parts and Labor Includes YourDrive YourData* Extend coverage up to 5 years 1 and 2 year Post Warranty Options
| General Information | |
|---|---|
| Category | Servers |
| Description | Lenovo ThinkSystem SR630 7X02 - Server - rack-mountable 1U - 2-way - 1 x Xeon Silver 4208 / up to 3.2 GHz - RAM 32 GB - no HDD - G200e - no OS - monitor: none |
| Manufacturer | Lenovo |
| MSRP | $2,449.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Dimensions & Weight / Depth | 71.5 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 11.9 kg |
| Dimensions & Weight / Width | 43.4 cm |
| Display / Type | None. |
| Header / Brand | Lenovo |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C624 |
| Miscellaneous / Product Color | Black |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 4208 |
| Processor / Type | Xeon Silver |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200e |
| Cache Memory | |
| Cache Per Processor | 11 MB |
| Installed Size | 11 MB |
| Dimensions & Weight | |
| Depth | 71.5 cm |
| Height | 4.3 cm |
| Weight | 11.9 kg |
| Width | 43.4 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, NMB-3 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, EN 55022 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, KCC KN22 Class A, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Included Accessories | Slide tool-less rail kit |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 750 watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C624 |
| Clock Speed | 2.1 GHz |
| CPU | Intel Xeon Silver 4208 |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 2400 MT/s |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, Patrol Scrubbing, Demand Scrubbing |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 768 GB (max) |
| RAM Supported |
|
| Slots | 24 (total) / 23 (empty) |
| Technology | DDR4 SDRAM - ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
