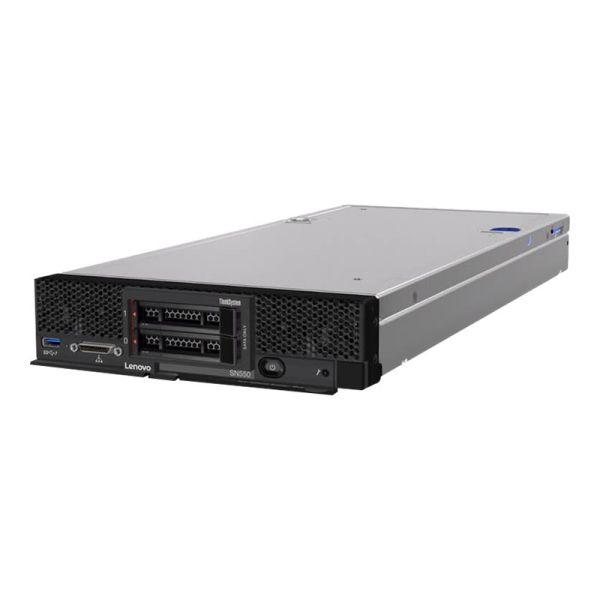

Lenovo ThinkSystem SN550 7X16
With twice the memory of the server, increased memory bandwidth, and faster and larger storage capacity, the SN550 is powerful enough for most key data center workloads, such as cloud, server virtualization, departmental databases, and virtual desktop infrastructure (VDI), as well as consolidating older servers onto a single blade. In addition, the SN550 is compatible with your current Flex System Enterprise Chassis, protecting your investment in your chassis infrastructure.
| General Information | |
|---|---|
| Category | Servers |
| Description | Lenovo ThinkSystem SN550 7X16 - Server - blade 2-way - no CPU - RAM 0 GB - no HDD - Matrox G200 - no OS - monitor: none - CTO |
| Manufacturer | Lenovo |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Blade |
| Dimensions & Weight / Depth | 49.27 cm |
| Dimensions & Weight / Height | 5.55 cm |
| Dimensions & Weight / Weight | 7.1 kg |
| Dimensions & Weight / Width | 21.55 cm |
| Display / Type | None. |
| Header / Brand | Lenovo |
| Mainboard / Chipset Type | Intel C624 |
| Miscellaneous / Product Color | Black |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200 |
| Dimensions & Weight | |
| Depth | 49.27 cm |
| Height | 5.55 cm |
| Weight | 7.1 kg |
| Width | 21.55 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | TUV GS, BSMI, CISPR 22 Class A, EN55024, EN55022 Class A, CB, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EN61000-3-2, EN61000-3-3, EK1-ITB2000, CNS 13438 Class A, ASHRAE Class A3 |
| Pricing Type | CTO |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Remote Management Controller | XClarity Controller (XCC) |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Processor / Chipset | |
| Chipset Type | Intel C624 |
| CPU | No CPU |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| RAM | |
| Features | Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4 |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 1.5 TB (max) |
| RAM Supported |
|
| Slots | 24 (total) / 24 (empty) |
| Technology | DDR4 SDRAM |
