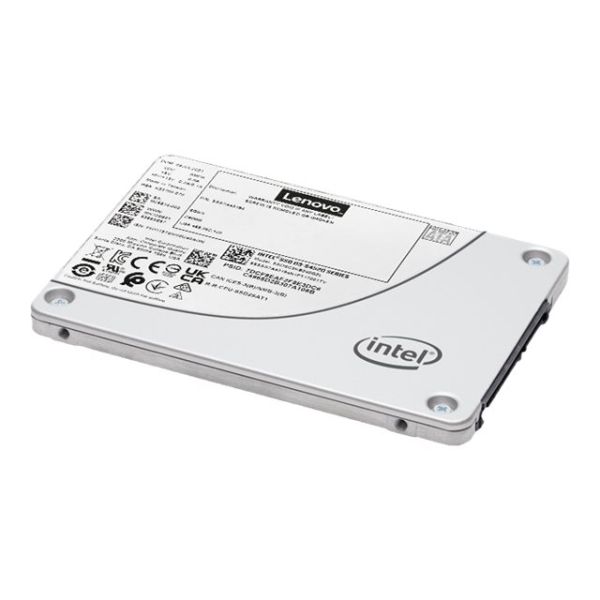

Lenovo ThinkSystem S4520
The Lenovo ThinkSystem S4520 solid state drive is designed to meet the demands of computing environments. Offering a substantial 480 GB capacity, this internal hard drive combines speed, reliability, and security into one package. With an impressive MTBF of 2,000,000 hours, users can trust in the drive's durability and long-term reliability. Featuring advanced 256-bit AES hardware encryption, the S4520 ensures that sensitive data remains secure, making it an ideal choice for businesses and IT professionals concerned with data protection. Additionally, its energy-efficient design, consuming only 3 W typically, makes it a cost-effective solution for expanding storage needs without significantly increasing power costs. Whether it's for intensive data analysis, secure data storage, or everyday business operations, the Lenovo ThinkSystem S4520 delivers on performance, security, and reliability, making it a valuable addition to any IT infrastructure.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo ThinkSystem S4520 - SSD - Read Intensive - encrypted - 480 GB - internal - 3.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem ST50 V2 7D8J (3.5"), 7D8K (3.5") |
| Manufacturer | Lenovo |
| MSRP | $2,699.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 7 mm |
| Dimensions & Weight / Weight | 70 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 480 GB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem ST50 V2 7D8J (3.5"), 7D8K (3.5") |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 480 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | Thermal throttling, End-to-end data protection, power loss data protection, S.M.A.R.T. |
| Form Factor | 3.5" |
| Hardware Encryption | Yes |
| Height | 7 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 70 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, BSMI CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, FCC CFR47 Part 15 B Class B, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, Morocco Decree # 2574-14 (EMC), China EFUP, UL/CSA 62368-1 |
| Performance | |
| 4KB Random Read | 79000 IOPS |
| 4KB Random Write | 30000 IOPS |
| Average Latency | 36 µs |
| Drive Class | Read Intensive |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 2.8 |
| Internal Data Rate | 550 MBps (read) / 460 MBps (write) |
| SSD Endurance | 2.5 PB |
| Power | |
| Power Consumption | 3 watt (typical) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
