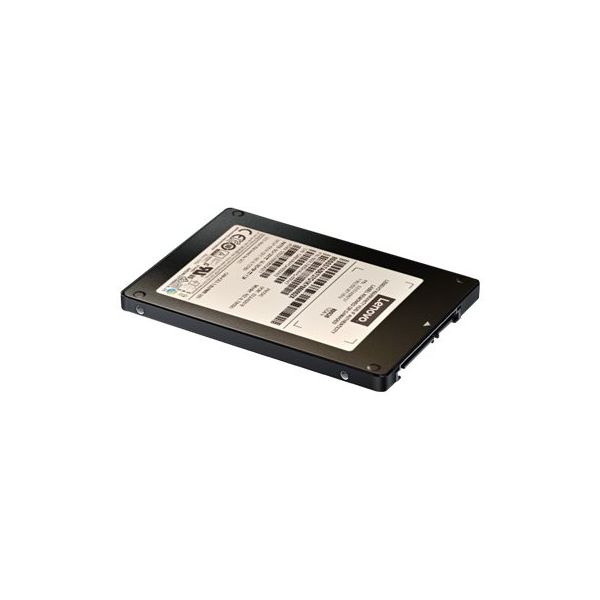

Lenovo ThinkSystem PM9A3

Availability: Out of stock
SKU
4XB7A79697
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo ThinkSystem PM9A3 solid state drive is a high-capacity, high-performance storage solution designed to meet the needs of demanding data environments. With a 3.84 TB capacity and leveraging advanced V-NAND technology, it offers fast and reliable storage. The drive's impressive internal data rates of up to 6900 MBps read and 4100 MBps write, facilitated by the U.2 PCIe 4.0 x4 (NVMe) interface, make it an excellent choice for applications requiring rapid data access and transfer. Designed for durability and reliability, it features an MTBF of 2,000,000 hours and incorporates an advanced ECC Engine and end-to-end data protection to safeguard your data against errors and loss. Furthermore, its efficient power consumption and compliance with multiple standards, including S.M.A.R.T., BSMI, and FCC, underscore its quality and reliability. Whether for enterprise storage systems, data centers, or high-performance computing, the Lenovo ThinkSystem PM9A3 SSD delivers on capacity, speed, and security.
General Information
CategoryHard drives
DescriptionLenovo ThinkSystem PM9A3 - SSD - 3.84 TB - internal - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - CRU - for ThinkSystem SR630 V2; SR645; SR650 V2; SR665
ManufacturerLenovo
MSRP$11,899.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth100 mm
Dimensions & Weight / Height7 mm
Dimensions & Weight / Weight70 g
Dimensions & Weight / Width70 mm
Hard Drive / Capacity3.84 TB
Hard Drive / Form Factor2.5"
Hard Drive / Hard Drive TypeInternal hard drive
Hard Drive / InterfaceU.2 PCIe 4.0 x4 (NVMe)
Hard Drive / InterfaceU.2 PCIe 4.0 x4 (NVMe)
Header / BrandLenovo
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Compatibility Information
Designed For
  • Lenovo ThinkSystem SR630 V2 7Z70 (2.5"), 7Z71 (2.5")
  • Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5")
  • Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z72 (2.5"), 7Z73 (2.5")
  • Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Dimensions & Weight (JTFpping)
JTFpping Depth17.4 cm
JTFpping Height6.3 cm
JTFpping Weight433 g
JTFpping Width13.3 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature70 °C
Min Operating Temperature0 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)20 g @ 10-2000 Hz
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x U.2 PCIe 4.0 x4 (NVMe)
General
Capacity3.84 TB
Depth100 mm
Device TypeSolid state drive - internal
FeaturesAdvanced ECC Engine, 32-layer V-NAND technology, NVM Express (NVMe), End-to-end data protection, S.M.A.R.T.
Form Factor2.5"
Height7 mm
InterfaceU.2 PCIe 4.0 x4 (NVMe)
Weight70 g
Width70 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardscULus, TUV, CB, BSMI, KC, VCCI, RCM, FCC, IC
Pricing TypeCustomer-replaceable Unit (CRU)
Performance
4KB Random Read1000000 IOPS
4KB Random Write190000 IOPS
Drive Writes Per Day (DWPD)1
Internal Data Rate6900 MBps (read) / 4100 MBps (write)
SSD Endurance7008 TB
Power
Power Consumption
  • 11 Watt (read)
  • 13.5 Watt (write)
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
