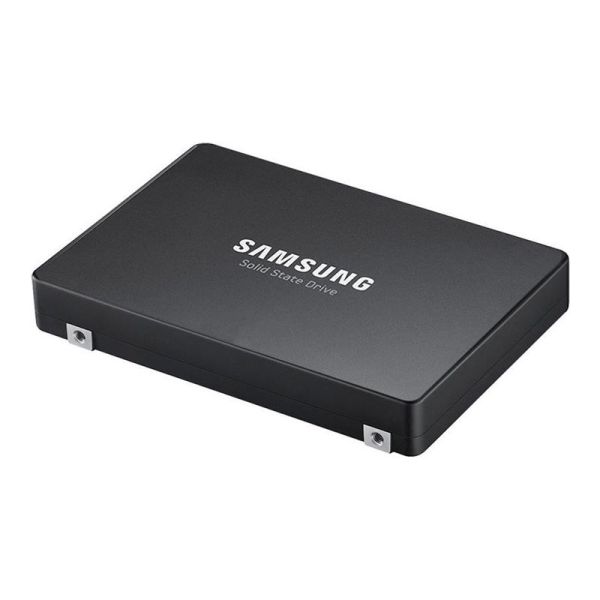

Lenovo ThinkSystem PM1743

Availability: Out of stock
SKU
4XB7A82367
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo ThinkSystem PM1743 is designed for performance and reliability in demanding environments. With a substantial storage capacity of 3.84 TB and an internal data rate of 14,000 MBps, this solid-state drive is able to handle intensive workloads with ease. Its features such as end-to-end data protection, advanced ECC engine, and V-NAND technology ensure data integrity and quick recovery from errors, making it a suitable solution for data-centric applications. This drive can operate within a wide temperature range, from 0°C to 70°C, and features advanced power loss protection architecture, ensuring readiness even in challenging conditions. The hot-swap capability enhances convenience, allowing for maintenance without downtime. With an endurance rating of 7008 TB and an MTBF of 2,500,000 hours, users can expect reliable performance over the long term. The self-encrypting capabilities bolster security, keeping sensitive information safe from unauthorized access. Equipped with a U.3 PCIe 5.0 x4 interface, the PM1743 is prepared for demanding data applications, making it an asset for any data management strategy.
General Information
CategoryHard drives
DescriptionLenovo ThinkSystem PM1743 - SSD - Read Intensive - encrypted - 3.84 TB - hot-swap - 2.5" - U.3 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.0, Self-Encrypting Drive (SED)
ManufacturerLenovo
MSRP$13,199.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth100 mm
Dimensions & Weight / Height15 mm
Dimensions & Weight / Weight190 g
Dimensions & Weight / Width70 mm
Hard Drive / Capacity3.84 TB
Hard Drive / Form Factor2.5"
Hard Drive / Hard Drive TypeHot-swap hard drive
Hard Drive / InterfaceU.3 PCIe 5.0 x4 (NVMe)
Hard Drive / InterfaceU.3 PCIe 5.0 x4 (NVMe)
Header / BrandSamsung
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature70 °C
Max Storage Temperature85 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)20 g @ 10-2000 Hz
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x U.3 PCIe 5.0 x4 (NVMe)
General
Capacity3.84 TB
Depth100 mm
Device TypeSolid state drive - hot-swap
FeaturesAdvanced ECC Engine, End-to-end data protection, virtual drive function, V-NAND Technology, Automatic Error Recovery, advanced power loss protection architecture, S.M.A.R.T.
Form Factor2.5"
Hardware EncryptionYes
Height15 mm
InterfaceU.3 PCIe 5.0 x4 (NVMe)
NAND Flash Memory Type3D triple-level cell (TLC)
Weight190 g
Width70 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardscUL, TUV-GS, CB, CE/EMC, BSMI, KC, VCCI, RCM, FCC, IC
Included AccessoriesHot-plug tray
Performance
4KB Random Read2500000 IOPS
4KB Random Write280000 IOPS
Average Latency20 µs
Drive ClassRead Intensive
Drive Writes Per Day (DWPD)1
Internal Data Rate14000 MBps (read) / 6000 MBps (write)
SSD Endurance7008 TB
Power
Power Consumption
  • 20.9 watt (read)
  • 21.2 watt (write)
Reliability
MTBF2,500,000 hours
Non-Recoverable Errors1 per 10^17
