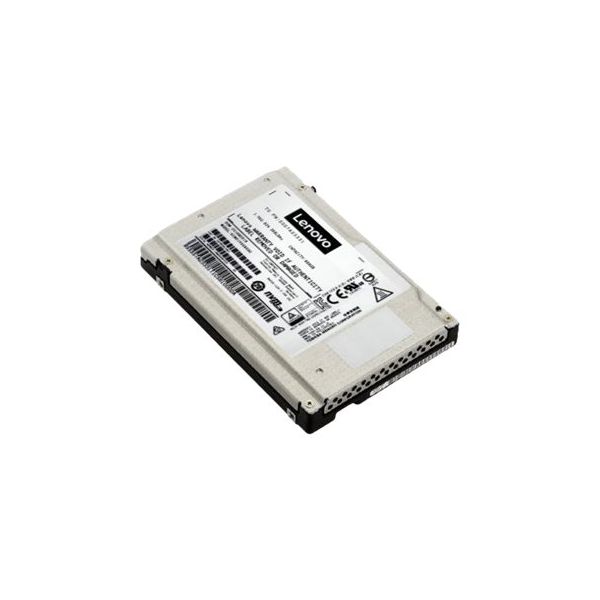

Lenovo ThinkSystem CM5-R Entry

Be the first to review this product

Availability: Out of stock

SKU

4XB7A38241

UPC Code

889488525249

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The ThinkSystem CM5-R Entry NVMe solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that use NAND flash memory technology with a PCIe 3.0 x4 NVMe interface to provide a high-performance solution for secure read-intensive workloads.

Specifications

General Information
Category	Hard drives
Description	Lenovo ThinkSystem CM5-R Entry - SSD - encrypted - 7.68 TB - hot-swap - 2.5" - U.2 PCIe 3.0 x4 (NVMe) - 256-bit AES - Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 - for ThinkSystem SD530 7X21 (2.5")
Manufacturer	Lenovo
MSRP	$6,629.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	15 mm
Dimensions & Weight / Weight	130 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	7.68 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.2 PCIe 3.0 x4 (NVMe)
Hard Drive / Interface	U.2 PCIe 3.0 x4 (NVMe)
Header / Brand	Lenovo
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SD530 7X21 (2.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	60 °C
Max Storage Temperature	85 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Shock Tolerance (operating)	1000 g @ 0.5 ms
Vibration Tolerance (operating)	2.17 g @ 5-800 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x PCI Express U.2 (NVMe)
General
Capacity	7.68 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
Encryption Algorithm	256-bit AES
Features	64-layer 3D BiCS FLASH, Sanitize Cryptographic Erase support, End-to-end data protection, Power Loss Protection (PLP)
Form Factor	2.5"
Hardware Encryption	Yes
Height	15 mm
Interface	U.2 PCIe 3.0 x4 (NVMe)
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	130 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	TUV, BSMI, EMC, UL 60950-1, EN 60950-1, KN22, MSIP, RoHS 2011/65/EU, EN 50581:2012, CNS 13438 Class B, ICES-003 issue 6 Class B, KN24 Class B, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR32:2015 Class B, EN 55024:2010, EN 55022:2010 Class B
Performance
4KB Random Read	770000 IOPS
4KB Random Write	80000 IOPS
Average Latency	30 µs
Drive Writes Per Day (DWPD)	1
Internal Data Rate	3200 MBps (read) / 2900 MBps (write)
SSD Endurance	14016 TB
Power
Power Consumption	16 watt (typical)
Reliability
MTBF	2,500,000 hours
Non-Recoverable Errors	1 per 10^17
