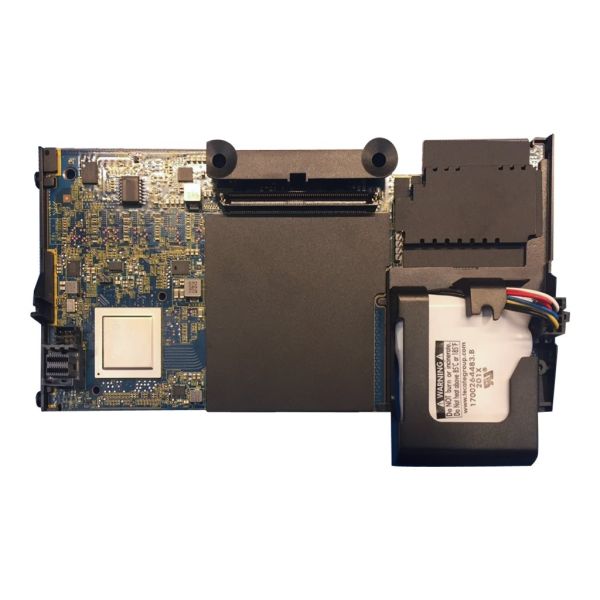

Lenovo ThinkSystem 930-4i
The Lenovo ThinkSystem 930-4i storage controller is designed to meet the demanding storage requirements of modern enterprises. With support for SAS 12 Gb/s and a PCIe 3.0 x8 host bus, it offers high-speed connectivity and data transfer rates, ensuring efficient system performance. The controller supports a wide range of storage devices, including disk arrays, hard drives, and solid state drives, providing flexibility in storage solutions. Additionally, it features advanced RAID support, including JBOD, RAID 0, and RAID 1, allowing users to optimize storage performance and data protection according to their needs. The inclusion of FastPath and SafeStore features further enhances data management and security, making the Lenovo ThinkSystem 930-4i an excellent choice for businesses looking to upgrade their storage infrastructure.
| General Information | |
|---|---|
| Category | Peripheral controller cards |
| Description | Lenovo ThinkSystem 930-4i - Storage controller (RAID) - 2 Channel - SATA / SAS 12Gb/s - RAID 0, 1, JBOD - PCIe 3.0 x8 - for ThinkSystem SN550 |
| Manufacturer | Lenovo |
| MSRP | $1,019.00 |
| UNSPSC | 43201407 |
| Main Specifications | |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage Controller / Form Factor | Plug-in card |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SN550 |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| General | |
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Features | CacheVault flash cache protection, FastPath, SafeStore |
| Software / System Requirements | |
| OS Required | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi) |
| Storage Controller | |
| Channel Qty | 2 |
| Data Transfer Rate | 12 Gbit/s |
| Interface | SATA / SAS 12Gb/s |
| Max Storage Devices Qty | 2 |
| Processor | LSI LSISAS3504 |
| RAID Level | RAID 0, RAID 1, JBOD |
| Supported Devices | Hard drive, disk array (RAID), solid state drive |
