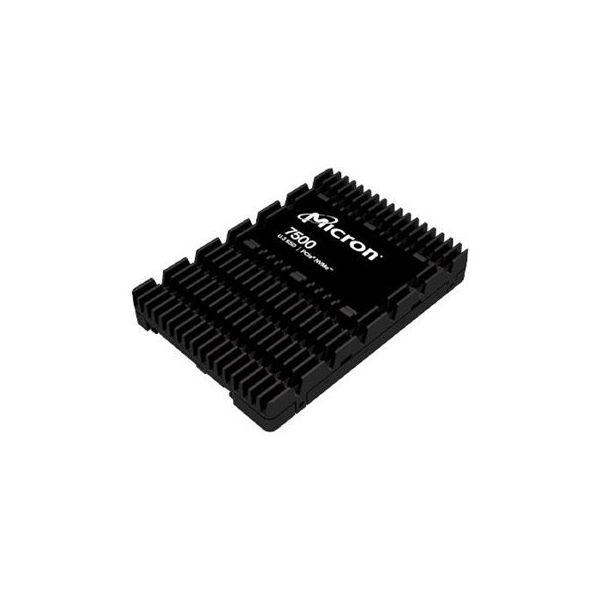

Lenovo ThinkSystem 7500 PRO
The Lenovo ThinkSystem 7500 PRO is designed for high-performance environments where reliability and speed are essential. With a robust capacity of 15.36 TB and an internal data rate of 7000 MBps, this solid-state drive ensures quick access to data, making it suitable for enterprise applications and demanding workloads. Its features such as adaptive thermal monitoring and end-to-end data protection contribute to maintaining the integrity and availability of vital data, even in challenging conditions. With an operating temperature range from 0 °C to 70 °C and a storage temperature range of -40 °C to 85 °C, this drive is resilient in various environments, suitable for both data centers and remote locations. Additionally, with a mean time between failures (MTBF) of 2,000,000 hours, it offers longevity over time. Equipped with significant encryption capabilities through self-encrypting drive technology, the Lenovo ThinkSystem 7500 PRO ensures that data remains secure. Features like Secure Boot and Key-Based Firmware Update add layers of protection to the stored information. Furthermore, with performance metrics such as 4KB random read IOPS at 1,100,000 and write IOPS at 250,000, this drive handles intensive workloads effortlessly. The integration of 3D triple-level cell (TLC) NAND technology offers improved endurance, enabling it to perform reliably for substantial data write requirements.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo ThinkSystem 7500 PRO - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED) - CRU |
| Manufacturer | Lenovo |
| MSRP | $38,199.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 15.36 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 9.1 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 15.36 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 3072-bit RSA |
| Features | 232-layer TLC NAND technology, Advanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, Adaptive thermal monitoring, Secure Execution Environment, Asymmetric Roots of Trust, Strong Asymmetric Key Support, RSA Delegation Key Support, Secure Boot, Key-Based Firmware Update, Key-Based Privileged Access, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 200 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55024 Class B, EN55032 Class B, RoHS, FCC, 47 CFR Part 15 Class B, UL, EN 60950-1 Second Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, BSMI CNS 13438 Class B, BSMI CNS 15663, RCM, AS/NZS CISPR 32 Class B, KC, RRL, KCC KN32 Class B, KCC KN35 Class B, WEEE 2012/19/EC, TUV, IEC60950/EN60950, VCCI, VCCI 2015.04 Class B, IC, ICES-003 Class B, Morocco, UkrSEPRO, UKCA, SI 2016/1091 Class B, SI 2012/3032 RoHS |
| Included Accessories | Hot-plug tray |
| Pricing Type | Customer-replaceable Unit (CRU) |
| Performance | |
| 4KB Random Read | 1100000 IOPS |
| 4KB Random Write | 250000 IOPS |
| Average Latency | 15 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 7000 MBps (read) / 5900 MBps (write) |
| SSD Endurance | 28032 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
