Lenovo ThinkSystem 5300 Entry

Be the first to review this product

Availability: Out of stock

SKU

4XB7A17183

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

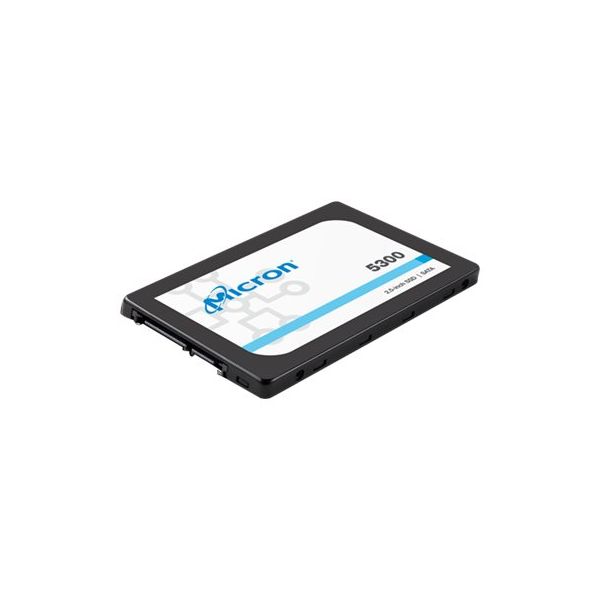

The 5300 Entry SATA solid-state drives (SSDs) are SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

Specifications

General Information
Category	Hard drives
Description	Lenovo ThinkSystem 5300 Entry - SSD - encrypted - 480 GB - internal - 2.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem SD650 V2 7D1M; SD650-N V2 7D1N
Manufacturer	Lenovo
MSRP	$339.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	7 mm
Dimensions & Weight / Weight	70 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	480 GB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Internal hard drive
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface	Serial ATA-600
Header / Brand	Lenovo
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SD650 V2 7D1M Lenovo ThinkSystem SD650-N V2 7D1N
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Max Storage Temperature	85 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Shock Tolerance (non-operating)	1500 g @ 0.5 ms
Vibration Tolerance (non-operating)	3.13 g @ 5-800 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x SATA 6 Gb/s
General
Capacity	480 GB
Depth	100 mm
Device Type	Solid state drive - internal
Encryption Algorithm	256-bit AES
Features	96-layer 3D NAND technology, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	7 mm
Interface	SATA 6Gb/s
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	70 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	Micron Green Standard, EN 55032 Class B, RoHS, FCC CFR47 Part 15 B Class B, UL 60950-1 Second Edition, BSMI CNS 13438, AS/NZS CISPR32:2015 Class B, RCM, KCC KN32 Class B, KCC KN35 Class B, WEEE 2002/96/EC, IEC60950/EN60950, TUV, VCCI 2015.04 Class B, ICES-003:2016, IC
Performance
4KB Random Read	85000 IOPS
4KB Random Write	36000 IOPS
Average Latency	175 µs
Drive Transfer Rate	600 MBps (external)
Drive Writes Per Day (DWPD)	1.5
Internal Data Rate	540 MBps (read) / 410 MBps (write)
SSD Endurance	1324 TB
Power
Power Consumption	2.5 watt (read) 3 watt (write)
Reliability
MTBF	3,000,000 hours
Non-Recoverable Errors	1 per 10^17
