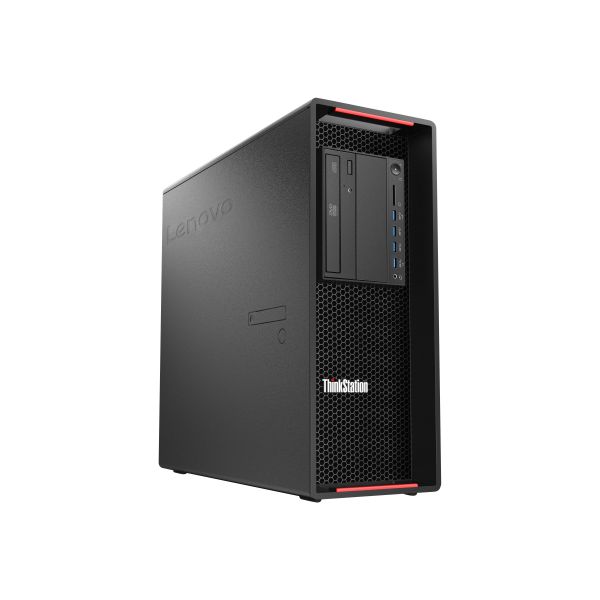

Lenovo ThinkStation P710 30B6

Be the first to review this product

Availability: Out of stock

SKU

30B6S09E00

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Powered by powerful processors and amazing graphics, this dual-processor workstation is one tough performer. Ideal for professionals with heavy data-processing needs, high speed, and parallel-processing capability.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P710 30B6 - Tower - 2 x Xeon E5-2667V4 / 3.2 GHz - RAM 64 GB - SSD 1 TB - DVD-Writer - Quadro M4000 - GigE - Win 7 Pro 64-bit (includes Win 10 Pro 64-bit License) - monitor: none
Manufacturer	Lenovo
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	48.5 cm
Dimensions & Weight / Height	44.6 cm
Dimensions & Weight / Weight	23.7 kg
Dimensions & Weight / Width	17.5 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface Type	Serial ATA-600
Header / Brand	Lenovo
Mainboard / Chipset Type	Intel C612
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD-Writer
OS Provided / Type	Microsoft Windows 7 Professional 64-bit Edition
Packaged Quantity	1
Processor / Clock Speed	3.2 GHz
Processor / Manufacturer	Intel
Processor / Number of Cores	8-core
Processor / Processor Number	E5-2667V4
Processor / Type	Xeon
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Specification Compliance	PC4-19200
RAM / Memory Speed	2400 MHz
RAM / Technology	DDR4 SDRAM
System / Hard Drive Capacity	1 TB
System / Type	Workstation
Video Output / Graphics Processor	NVIDIA Quadro M4000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	25 MB
Installed Size	50 MB
Card Reader
Type	29 in 1 card reader
Dimensions & Weight
Depth	48.5 cm
Height	44.6 cm
Weight	23.7 kg
Width	17.5 cm
Environmental Parameters
Humidity Range Operating	10 - 80% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	2 (total) / 1 (free) x external 5.25" x 1/2H 4 (total) / 3 (free) x internal 3.5"
Interfaces	8 x USB 3.0 (4 front, 4 rear) (one of them is Always On, one of them is Diagnostic) 1 x headphones/microphone (1 in front) 4 x USB 2.0 1 x serial 2 x LAN (Gigabit Ethernet) 1 x microphone 1 x audio line-in 1 x audio line-out 1 x PS/2 keyboard 1 x PS/2 mouse 4 x DisplayPort
Slots	12 (total) / 8 (free) x DIMM 288-pin 2 (total) / 0 (free) x CPU 2 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (2 processors must be installed) 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height (2 processors must be installed) 1 (total) / 1 (free) x PCI - full-length, full-height 1 (total) / 1 (free) x PCIe 2.0 x4 - half-length, full-height 1 (total) / 1 (free) x Flex Connector
General
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	NVIDIA Quadro M4000
Video Interfaces	DisplayPort
Video Memory	8 GB
Hard Drive
Capacity	1 x 1 TB
Interface Type	SATA 6Gb/s
Type	SSD
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Miscellaneous
Compliant Standards	RoHS, GREENGUARD
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately)
Monitor
Monitor Type	None.
Mouse
Interface	USB
Technology	Optical
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller	Intel I218-LM, I210-AT
Ethernet Ports	2 x Gigabit Ethernet
Features	Wake on LAN (WoL)
Operating System / Software
OS Provided	Microsoft Windows 7 Professional 64-bit Edition (available through downgrade rights from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit License
Optical Storage
Type	DVD-Writer
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Provided	850 watt
Voltage Required	AC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel C612
Clock Speed	3.2 GHz
CPU	Intel Xeon E5-2667V4
CPU Qty	2
CPU Upgradability	Upgradable
Max CPU Qty	2
Max Turbo Speed	3.6 GHz
Number of Cores	8-core
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features	4 x 16 GB
Effective Memory Speed	2400 MT/s
Features	Registered, slots 7 - 12 are available in two-processor configuration only
Form Factor	DIMM 288-pin
Installed Size	64 GB (installed) / 384 GB (max)
Memory Specification Compliance	PC4-19200
Slots	12 (total) / 8 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x RAID
