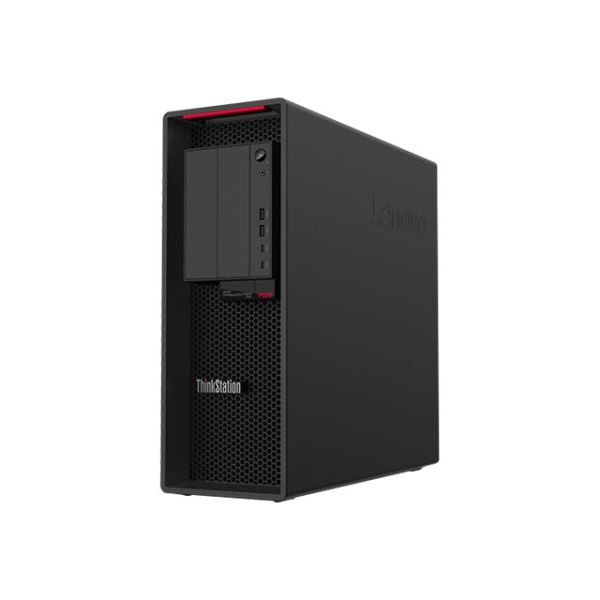

Lenovo ThinkStation P620 30E0 - 30E0010CUS-1780908132

Be the first to review this product

Availability: Out of stock

SKU

30E0010CUS

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Powered by AMD Ryzen Threadripper PROChoice of operating systemsUp to 2 NVIDIA RTX graphics cardsCombines legendary reliability& innovation with professional manageability and enterprise-class supportPerformance-tuned and ISV-certified for multithreaded application environmentsAn air-cooled thermal systemBuilt-in suite of security solutionsPerfect for architects, engineers, scientists, geophysicists, and more.

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P620 30E0 - Tower 1 x Ryzen ThreadRipper PRO 5955WX / up to 4.5 GHz - AMD PRO - RAM 32 GB - SSD 1 TB - TCG Opal Encryption, NVMe - Radeon Pro W6800 - 10 Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: English - Lenovo TopSeller - with 3 Years Lenovo Premier Support
Manufacturer	Lenovo
MSRP	$7,059.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	46 cm
Dimensions & Weight / Height	44.6 cm
Dimensions & Weight / Weight	24 kg
Dimensions & Weight / Width	16.5 cm
Display / Type	None.
Hard Drive / Capacity	1 TB
Hard Drive / Interface	PCI Express 4.0
Hard Drive / Interface Type	PCI Express 4.0
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	AMD WRX80
Mainboard / Processor Socket	Socket SP3
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	10 Gigabit Ethernet
Optical Storage / Drive Type	No optical drive
Optical Storage / Type	None
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	4 GHz
Processor / Manufacturer	AMD
Processor / Number of Cores	16-core
Processor / Processor Number	5955WX
Processor / Type	Ryzen ThreadRipper PRO
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	3200 MHz
RAM / Technology	DDR4 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	1 TB
System / Platform Technology	AMD PRO
System / Type	Workstation
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	AMD Radeon Pro W6800
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	64 MB
Installed Size	L3 cache - 64 MB
Card Reader
Type	15 in 1 card reader
Dimensions & Weight
Depth	46 cm
Height	44.6 cm
Weight	24 kg
Width	16.5 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x Flex Bay 2 (total) / 2 (free) x internal 3.5"
Interfaces	6 x USB 3.2 Gen 2 (2 front, 4 rear) (one of them is 11W charging) 2 x USB-C 3.2 Gen 2 (2 in front) (15 Watt charging) 2 x USB 2.0 1 x LAN (10Gigabit Ethernet) 1 x headphones/microphone (1 in front) 1 x audio line-in 1 x audio line-out 1 x microphone 1 x PS/2 keyboard 1 x PS/2 mouse 6 x Mini DisplayPort 1.4a
Slots	4 (total) / 3 (free) x PCIe 4.0 x16 - full-length, full-height 2 (total) / 2 (free) x PCIe 4.0 x8 - full-length, full-height 2 (total) / 1 (free) x M.2 Card
General
Built-in Devices	Front 4-digit diagnostic LED
Bundled Services	3 Years Lenovo Premier Support
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	AMD PRO
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	AMD Radeon Pro W6800
Video Interfaces	DisplayPort
Video Memory	32 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 1 TB
Features	TCG Opal Encryption, NVM Express (NVMe)
Interface Type	PCI Express 4.0
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	English
Manufacturer Warranty
Service & Support	Base warranty - 3 years - on-site Extended warranty - 3 years - on-site - response time: next business day
Miscellaneous
Compliant Standards	RoHS, GREENGUARD
Included Accessories	Lock kit (common key)
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	10 Gigabit Ethernet
Ethernet Controller	Marvell AQtion AQN-107
Features	AMD Pro
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	No optical drive
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Provided	1000 watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	AMD WRX80
Clock Speed	4 GHz
CPU	AMD Ryzen ThreadRipper PRO 5955WX
CPU Qty	1
CPU Socket	Socket SP3
L2 cache	8 MB
Max CPU Qty	1
Max Turbo Speed	4.5 GHz
Number of Cores	16-core
RAM
Configuration Features	2 x 16 GB
Effective Memory Speed	3200 MT/s
Features	Registered, 8-channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	32 GB (installed) / 1 TB (max)
Slots	8 (total) / 6 (empty)
Technology	DDR4 SDRAM - ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x RAID
Storage Controller (2nd)
Controller Interface Type	PCI Express
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x RAID
Sustainability Information
EPEAT Compliant	EPEAT Silver
TCO Certified	TCO Certified Desktops 9
